Flexible Tubing

Model:
ST06

Product Description

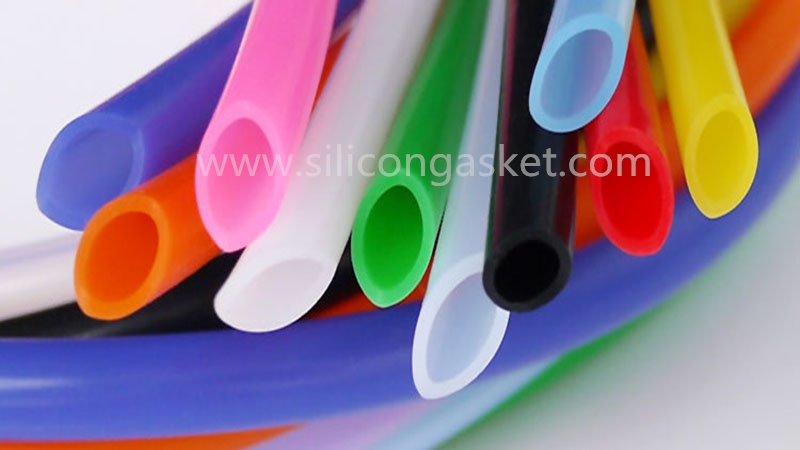

Silicone Rubber Flexible Tubing
Silicone Flexible Tubing & Tube, known as Silicone Flexible Hose, Silicone Flexible Hose & Pipe, is made of elastic clear nature high temp silicone rubber materials by extruded molded tooling, silikon compression mold, LSR injection Molding, which is designed as surgical tubing, lab tubes, sanitary tubing, auto silicone hoses, pump tube, silicone coolant & radiator hose, etc.

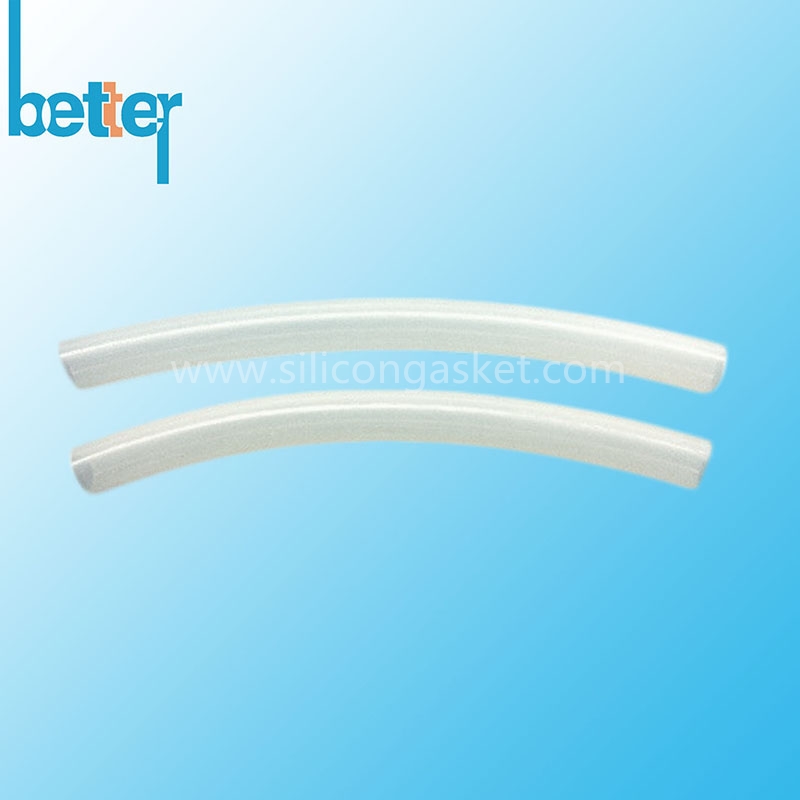

medical Flexible Tubing

Medical/Laboratory & Food grade silicone ( FDA & LFGB ) flexible tubing is made of clear peroxide-cured silicon and platinum-cured silicone, which is specially designed for body contact applications and medical devices due to features: different sizes available, excellent flexibility, easily sterilized; no organic plasticizers, pthalates, latex additives, no peroxide cure chlorophenyl or PCB by-products.
Durometer hardness: Shore A 50
Tensile Strength at Break: 1388 psi
Elongation at Break: 815%
Modulus at 200%: 299psi
Tear Strength: 263ppi

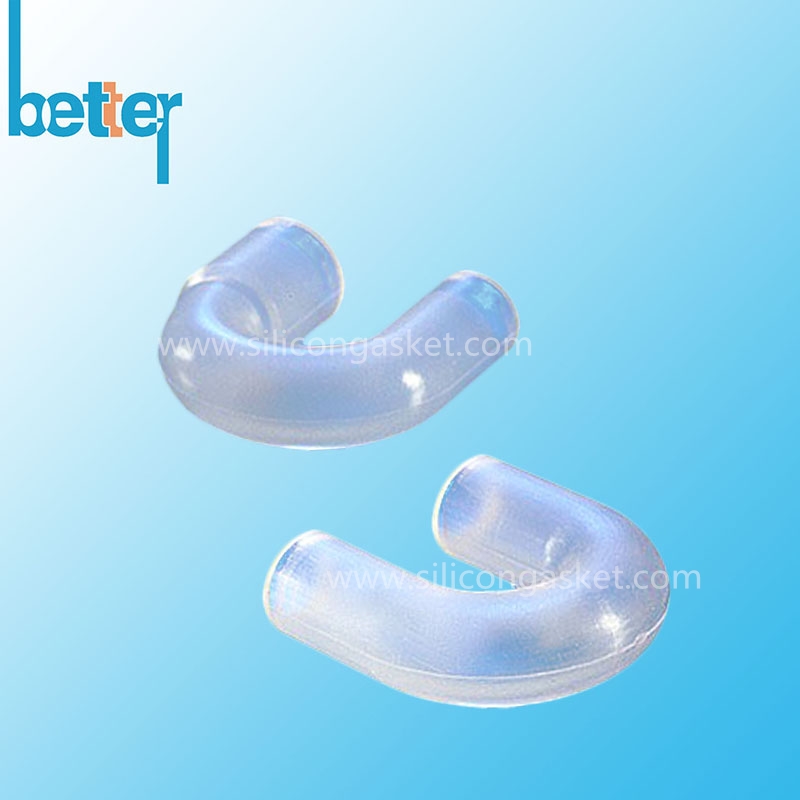

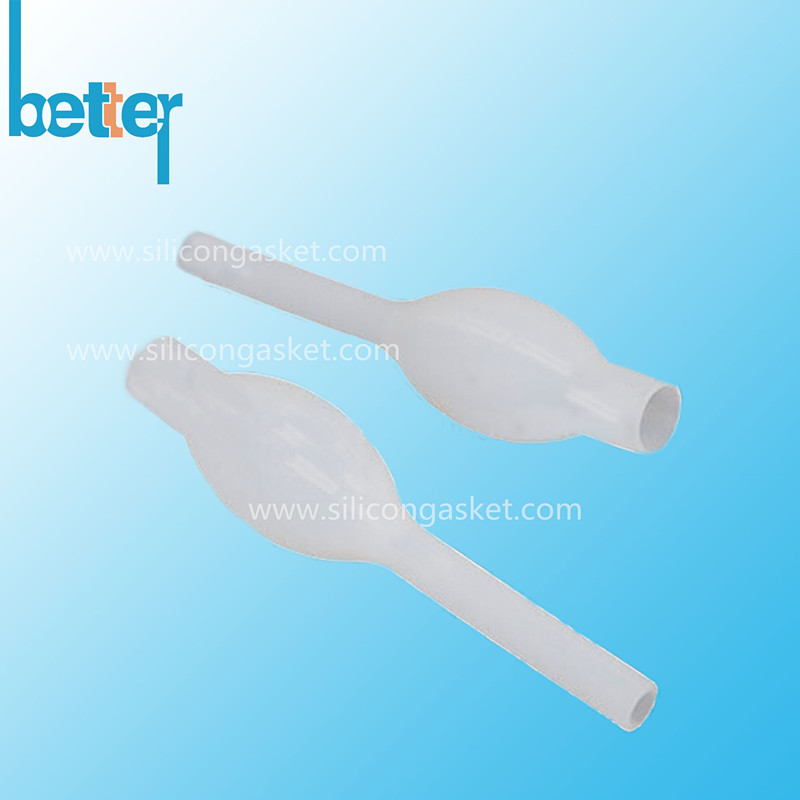

flexible silicone tubing

Silicone FlexibleTubing is also autoclavable, odorless, tasteless, inert and has good resistance to high temperature, compression set, aging, UV, ozone, gas and moisture, etc.
Silicon Flexible Tubing’s temperature resistance (-100°F to 500°F), good electrical properties (with good electrical insulating and self-extinguish ability) make it an excellent choice for electric appliance and computer appliance.
Peroxide-cured Silicon FlexibleTubing contains no sulphur or other acid-producing chemicals, which makes other materials contacting with silicone tube no staining, corroding, or deteriorating.

Silicone Flexible Tubing can’t be recommended for continuous steam and high pressure applications. If exposed to repeated steam sterilization or long-term high temperature or pressure, it will eventually relax and become gummy. Then flexible tubing must be replaced.

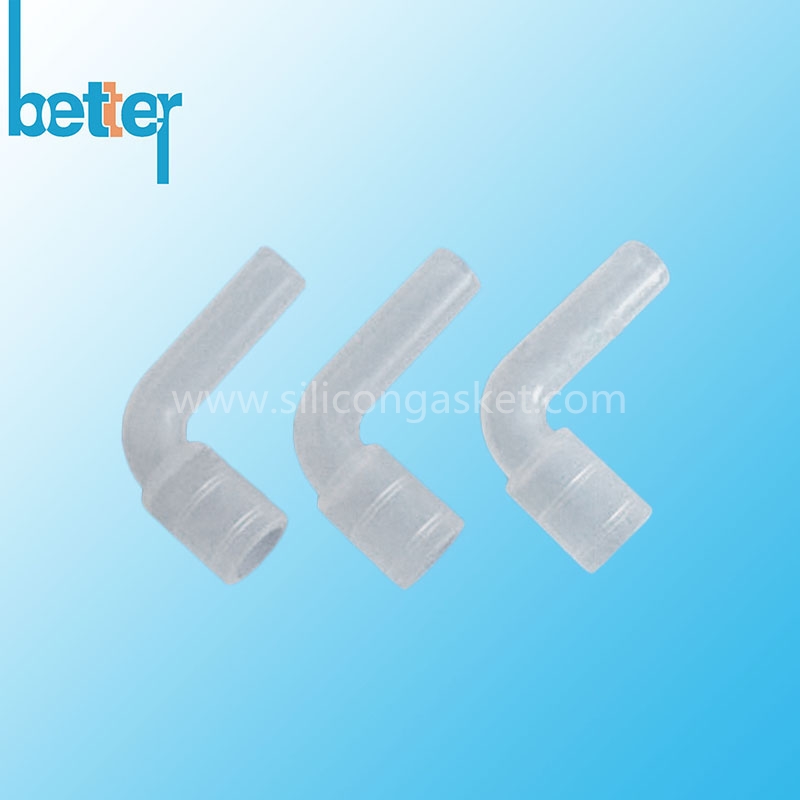

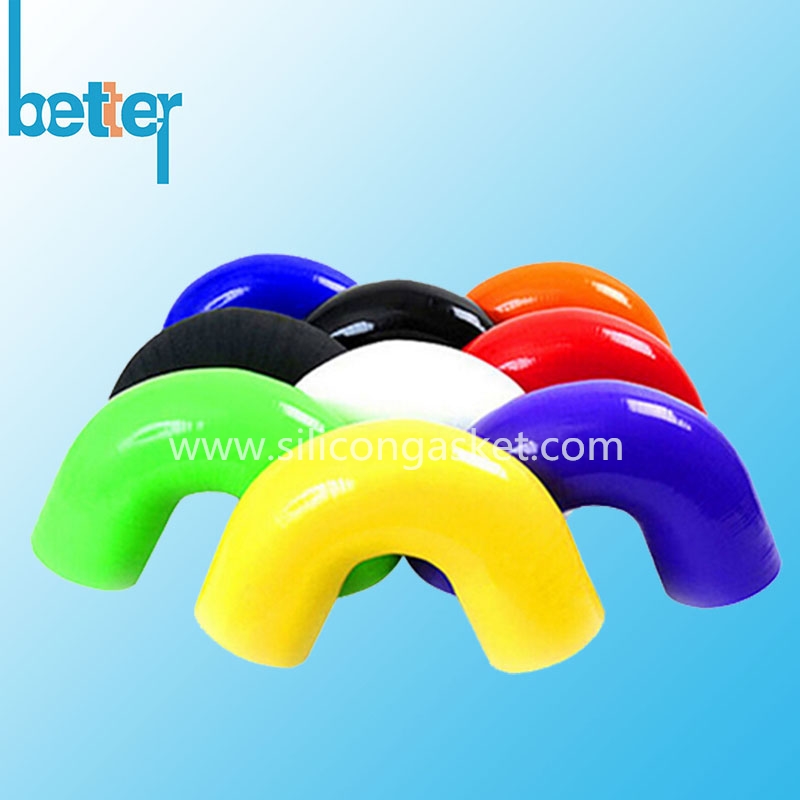

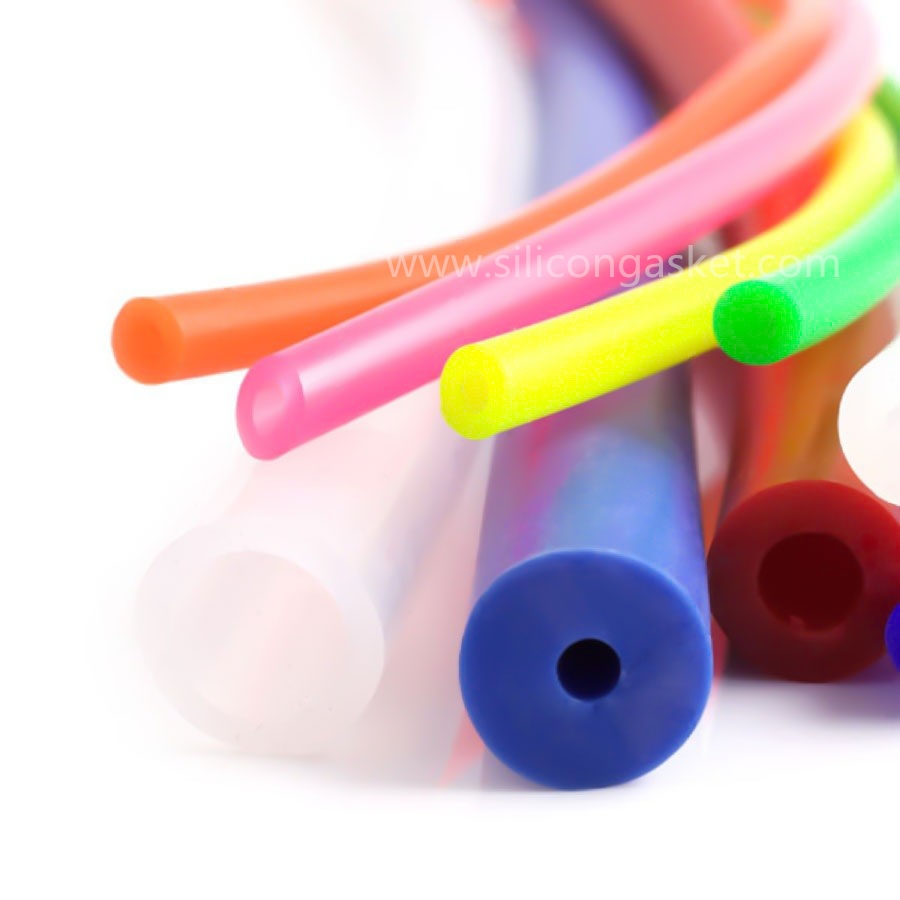

flexible rubber hose

Flexible Tubing, Pipe & Hose is usually produced by extruded molded tooling, which is made from other flexible rubber or hard plastic like EPDM, Polyethylene, PVC, Neoprene, Vinyl, Polypropylene, Nitrile, Polyurethane, PTFE, Nylon, Tygon, Latex, and widely used in Medical, Auto, industries, pipelines etc. Like radiator and coolant devices.
Silicone Extrusion Molded main advantages:
1. Create very complex cross-sections
2. Work brittle materials because the materials only encounters compressive and shear stresses.
3. Form silicone rubber tubing with an excellent surface finish.

Our Company Advantages for Silicone FlexibleTubing Mold-making and Production:

1. Precision Own Mold-Making Technology since 1998, one stop service for silicone extruded molded components, silicone rubber compression molded components, plastic injection molded and liquid silicone rubber molding components.

2. In-depth knowledge of elastomeric materials molded

3. In-depth knowledge of silicone rubber flexible tubing mold-making technology and tubing molded technology.

4. Rich experience in silicone tubing production and the selection of fittings and clamps for tubing
Notes: Take care of the selection of fittings and clamps for flexible Tubing because the sharp bards or unlined metal clamps could tear into the tubing wall and possibly cause a failure.

5. Our company not only makes extruded tube and elastic silicone rubber flexible tubing compression tooling, also can make plastic + liquid silicone rubber tubing overmolding injection mold & plastic over molded tubing, etc.
Medical Tubing

Custom Silicone Flexible Tubing quick quotation requirements:
a. Offer 2D, 3D designs drawings, samples or tell us your ideas.
b. Materials demands: Solid Silicone or Liquid silicone rubber
c. Materials Class demands: food grade or medical grade materials
c. Hardness demands: 10-80 Shore A ( Durometer)
d. Working environment: Like Working temperature, chemical environment etc.
e. Production environment Demands: If need clear room
f. Package Requirement
pvc tube
