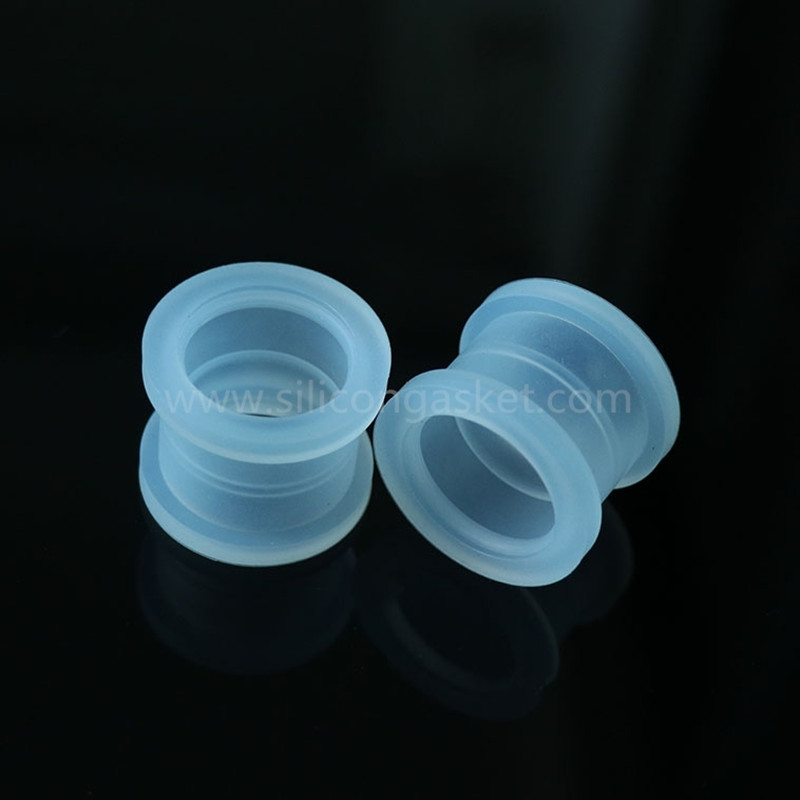

Silicone Bushing, also known as Silicone Bush, Rubber Bushing (Bush) and Tubular Rubber Sleeve & Lining, it is a kind of vibration isolator separating the faces of two parts while still allowing a set degree of free movement, damping the energy transmitted through the silicone bushing, which is used on flange bearing, plain bearing, motor and transmission mounts, sway bar, lift spacers and suspension system component replacements. A rubber bushing is also be described as shock bushing and bearing sleeve.
Bushing (Bush) is generally made from silicone, synthetic rubber, polyurethane, nylon, urethane and plastic, PTFE, etc, by its soft nature, higher abrasion, cut and tear resistance, high tensile, which is produced by die-coating mould, rubber compression molding or plastic injection mold tooling. Other bushing is also made from bronze, steel, brass, copper.
Silicone Rubber Bushing applications

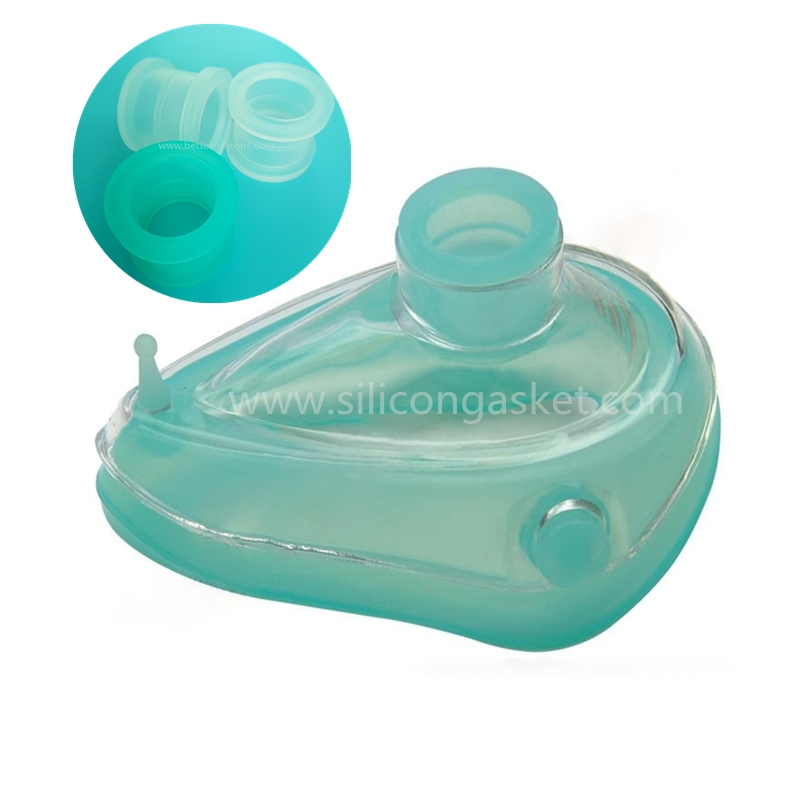

Silicone Bushing serves as the important component in medical field, usually made of medical grade silicone with good bio-compatibility. More and more liquid silicone bushing are applied in medical devices, like tracheal casing pipe and infusion tube, known as silicone tubing sleeve.
Suspension Bush is very common in vehicle suspension systems. Suspension equips the system of springs, shock absorbers and linkage that connects the vehicle to its wheels, which keep vehicle occupants comfortable and reasonably well isolated from road noise, bumps and vibrations.
Suspension Bushing Working:
When traveling over a large bump, silicone rubber bushing can minimizing transmission of noise and vibrations through to the chassis of vehicle. Therefore, a rubber bushing also described as a flexible mounting or anti-vibration mounting.
In skateboards, rubber bushings limit the motion of the trucks, called skateboard bushing.
In mechanical devices, with a-long-time use in moving components, silicone rubber bushing would wear out, and then need to be replaced.
Advantages of replacing bushing:
1. Convenient and easy operation
2. Low cost
3. Ensure precision of the whole equipment
Silicone Rubber Bushing Production of Our Advantages:

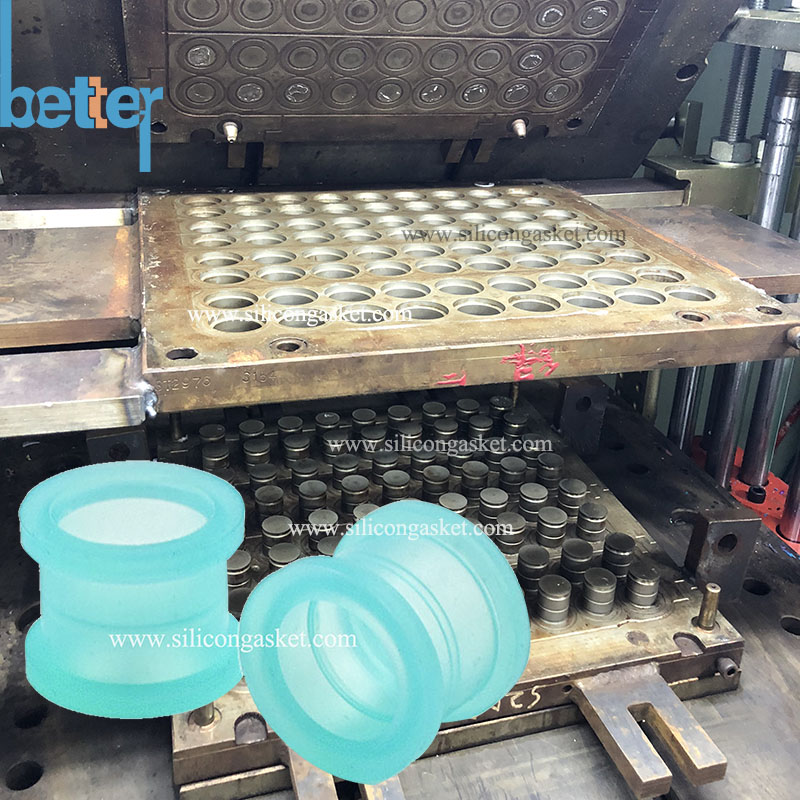

Own Precision Mold-Making Technology and Production Plants
e.g. Silicone rubber compression molded parts can up to +/-0.02mm, small or mini flashing, parting line controls

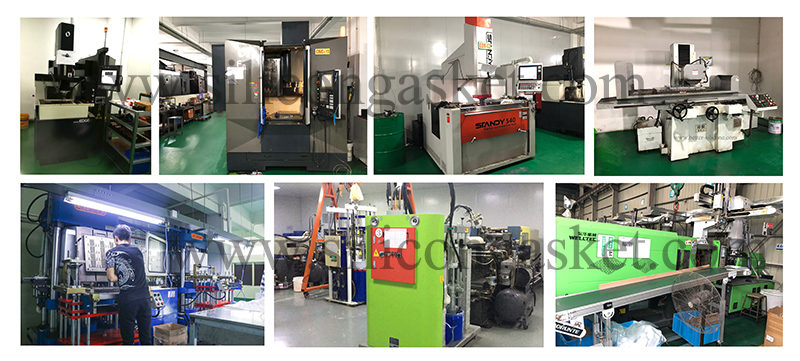

Own Mold-making Plant Silicone Rubber Compression Plant, Plastic Injection Plant, Liquid Silicone Rubber Compression Plant and Assembly Plant
Professional Sales Teams, will also well work together with mold designing department, QC department
Different Silicone Rubber Bushing can be manufactured in dust-free plant:
e.g. Silicone Bush can be manufactured by different materials with different properties and different suitability.
After products quality confirm, we control Rubber Bushing production quality strictly according to ISO9001
Custom Silicone Rubber Bushing Requirements:
Offer 2D, 3D design drawings or samples, and also tell us your sizes tolerance demands.
Bushing Materials Demands: Silicone (MVQ), Neoprene, NBR, EPDM, Polyurethane, etc, or tell us operating environments, functions etc.
Rubber Bushes Color Demands
Durometer Demands (Hardness Shore A)
Rubber Silicone Bushing Surface Demand
Bushing Parting Line Demands:
Rubber Bushing Flashing Demands etc.
Different Silicone Rubber Bushing durometer demands, surface demands, parting lines demands or rubber flashing demands vary in production difficulty and production cost, especially mold-making technology demands, compression mold steel choice, mold maintain when mass production, etc.
