4*4 silicone keypad

4*4 silicone keypad is made from translucent silicon rubber with 16 buttons. Each button has a hole underneath that accepts either a 3mm or 5mm standard LED.
4*4 silicone keypad consists of four parts of 4 button pads. There is a conductive circle behind each button, Button force is between 190 and 210grams activation force.

Quantity:

4*4 Silicone Keypad

4*4 silicone keypad is made from translucent silicon rubber with 16 buttons. Each button has a hole underneath that accepts either a 3mm or 5mm standard LED.

4*4 silicone keypad consists of four parts of 4 button pads. There is a conductive circle behind each button, Button force is between 190 and 210grams activation force.

4*4 keypad drawing.jpg


16 button pad.jpg

4*4 Silicone Keypad Production

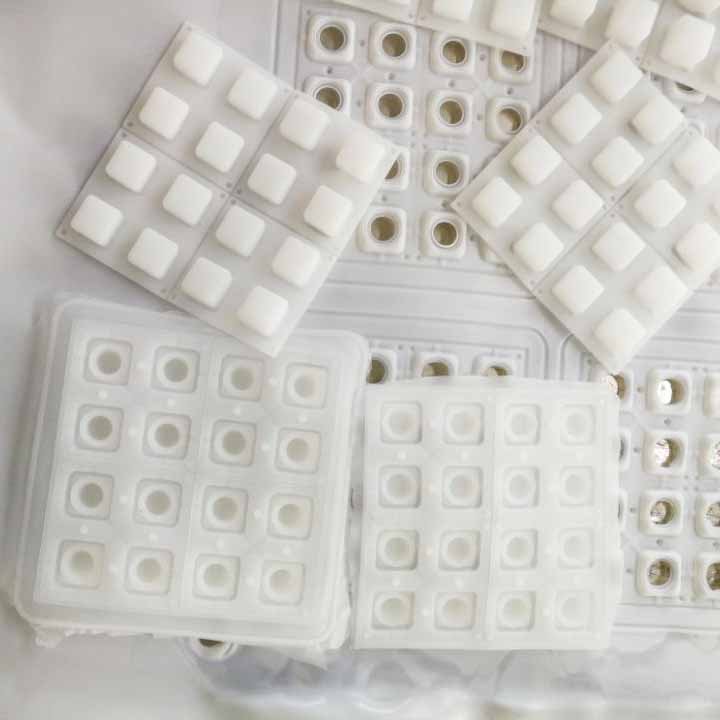

 4*4 Silicone keypad.jpg



silicone keypad production process.jpg

























4*4 silicone keypad Design &  Structure

1. Silicone Button & Key                                                           Silicone button pad.jpg

2. Silicone Button Pad

3. Button & Key's Web

4. Button Travel

5. Carbon Pills & Graphite Pads ( Conductive Methods)


4*4 silicone keypad Surface  Symbols & Icons

1. Silk Screen Printing

2. Laser Etching ( Legends for LED backlight)

3. Embossed & Debossed Molded Symbols


4*4 silicone keypad Surface Treatment

1. Matte Smooth Coating                                    IMG_6088.JPG

2. PU Coating

3. Epoxy Coating

4. Silicone Key with plastic button cap

5. Silicone Key with Metal button cap

Notes:

In order to prevent the printing legends & Icons on the surface of silicone keypads & buttons from wearing off, most our customers choose matte smooth coating, PU coating, epoxy coating, etc to protect the surface.

The protective cover depends on the environment where the key would be used.PU coating is more wearproof, and protective effects is more better than matte smooth coating. However, PU coating is more expensive, and matte smooth coating have good touch feeling.


4*4 silicone keypad Conductive Materials

1. Graphite Pads & Black Carbon Pills
2. Electrically Conductive Printing Ink
3. Metal Domes
4. Golden Pills & Copper Pads
5. Nickle Pills


Xiamen Better Silicone Co.,Ltd is your reliable and professional keypads & keyboard manufacturer and suppliers.
Silicone Rubber Keypads production technology and professional service is our advantage:
Save your money and time.

Silicone keymat.jpg

Typical Physical Property

Rubber Key.jpg

Typical Force/Stroke Curve

Silicone keyboard.jpg

Keypad Contact Types

keypad contacts.jpg


Keypad Legend Types and Surface Treatment

Rubber keypad.jpg

Travel/Stroke Sketch

Silicone Button.jpg

Keypad Drawings Information

rubber keyboard.jpg
