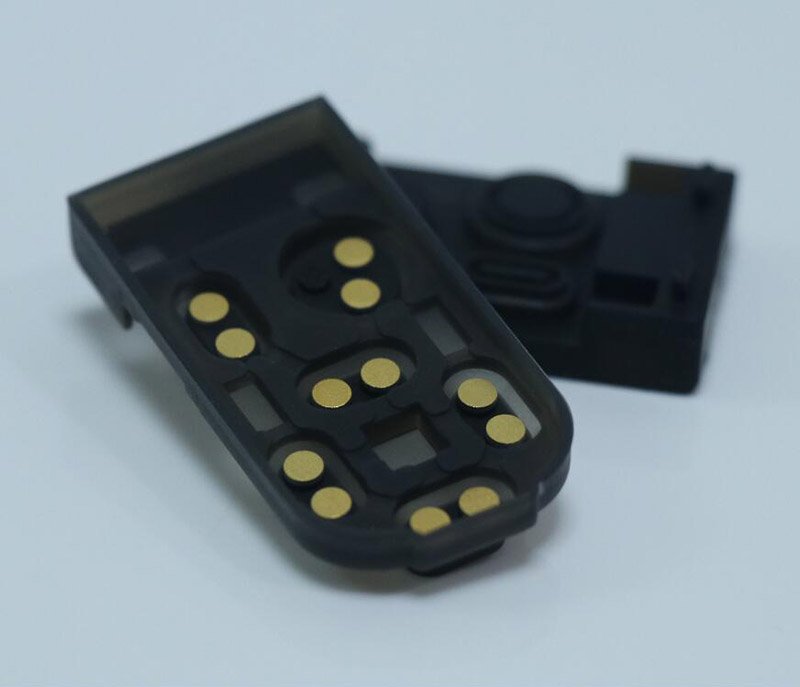

Metal Dome Keypad

Metal Dome Keypad, also known as Conductive Metal Pill Keypad, silicone keypad with metal pills. Metal pills are used to support extremely low contact resistance requirement for silicone keypad applied to electrical appliances and medical/health care products.

Quantity:

Metal Dome Keypad

Metal Dome Keypad, also known as Conductive Metal Pill Keypad, silicone keypad with metal pills. Metal pills are used to support extremely low contact resistance requirement for silicone keypad applied to electrical appliances and medical/health care products.

metal dome rubber keymat.jpg

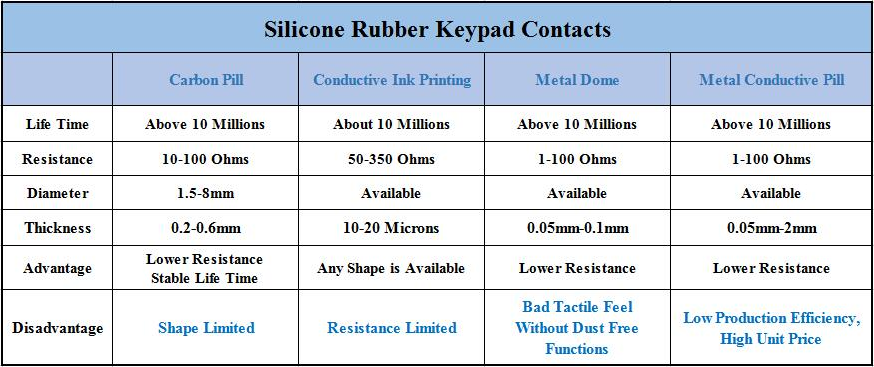

Metal Dome Keypad Advantage & Disadvantage

Advantage: Lower resistance, Common keyboard's Conductive Ways,
Disadvantage: Bad Tactile Feel, High cost, Without Dust Free Functions

conductive ways.png

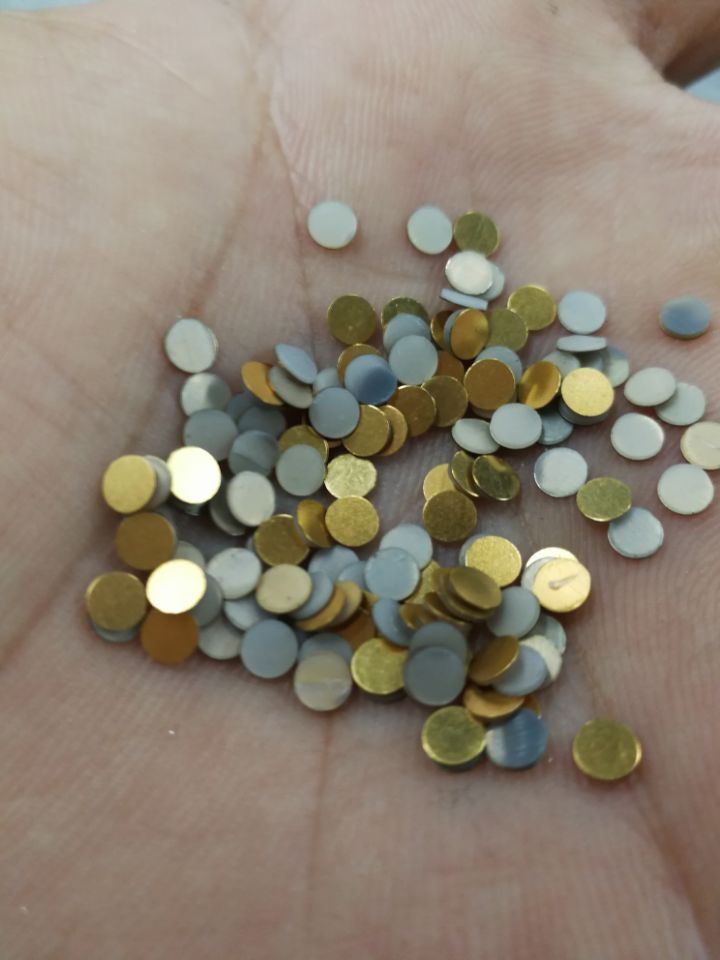

metal dome.jpg

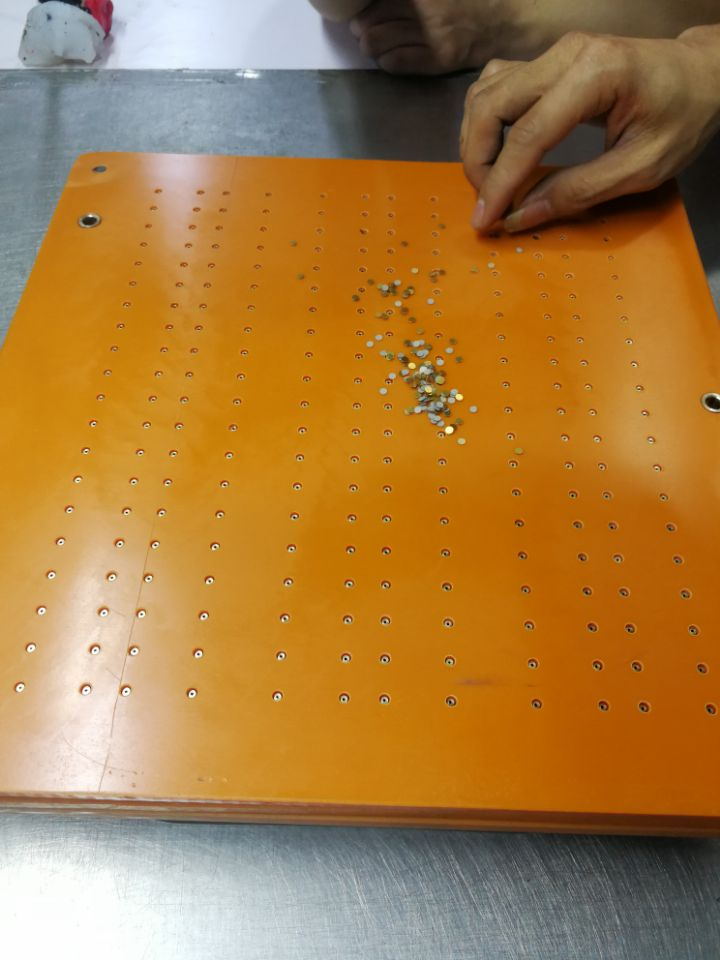

metal pills.jpg

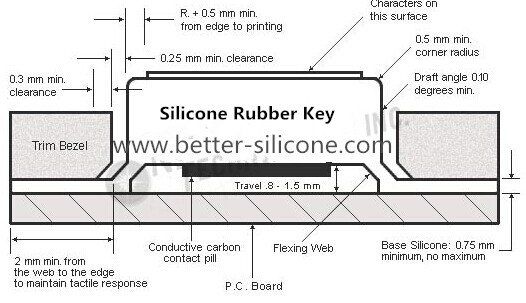

Metal Dome Keypad Design &  Structure

1. Silicone Button & Key                                                                          keypad with metal domes.jpg

2. Silicone Button Pad

3. Button & Key's Web

4. Button Travel

5. Carbon Pills & Graphite Pads ( Conductive Methods)





Metal Dome Keypad Surface Treatment

1. Matte Smooth Coating                                    IMG_6088.JPG

2. PU Coating

3. Epoxy Coating

4. Silicone Key with plastic button cap

5. Silicone Key with Metal button cap

Notes:

In order to prevent the printing legends & Icons on the surface of silicone keypads & buttons from wearing off, most our customers choose matte smooth coating, PU coating, epoxy coating, etc to protect the surface.

The protective cover depends on the environment where the key would be used.PU coating is more wearproof, and protective effects is more better than matte smooth coating. However, PU coating is more expensive, and matte smooth coating have good touch feeling.


Conductive Keypad Materials

1. Graphite Pads & Black Carbon Pills                                 metal domes
2. Electrically Conductive Printing Ink
3. Metal Domes
4. Golden Pills & Copper Pads
5. Nickle Pills


Metal Dome Keypad Designers or Manufacturer Notes:
Backlight Keypad Designers or Manufacturers, should not only consider actuation force and silicone rubber keypads structure such as silicone buttons travels, keypad conductive materials, silicone rubber buttons webbing, but also should consider silicone surface & materials demands, such as symbols & icons, protective keyboard cover, silicone keypads materials choice & transparency, hardness, color spraying coating.



Xiamen Better Silicone Co.,Ltd is your reliable and professional keypads & keyboard manufacturer and suppliers.
Silicone Rubber Keypads production technology and professional service is our advantage:
Save your money and time.

epoxy rubber keypad.jpg     laser .jpg

              Epoxy Coating Keypad                                                   Laser Etched Keypad

 custom tv remote control keypad.jpg        rubber keymat.jpg

      Fluorescent Silicone Keypad                                                         Silk Screen Printing Keypad



Typical Physical Property

Rubber Key.jpg

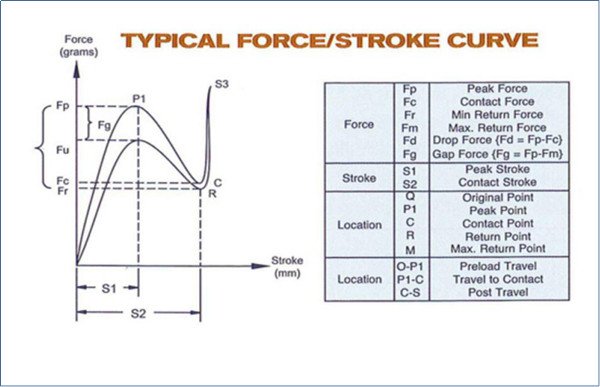

Typical Force/Stroke Curve

Silicone keyboard.jpg

Keypad Contact Types

keypad contacts.jpg


Keypad Legend Types and Surface Treatment

Rubber keypad.jpg

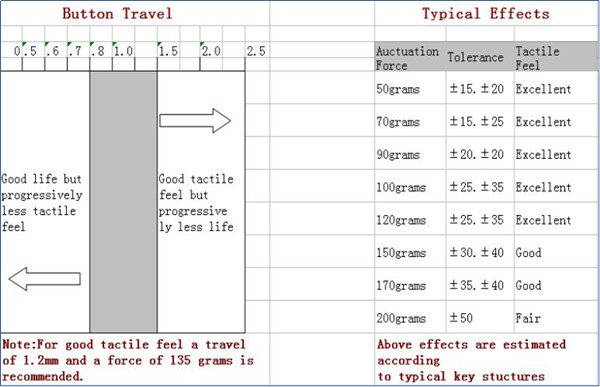

Travel/Stroke Sketch

Silicone Button.jpg

Keypad Drawings Information

rubber keyboard.jpg
