Heat Shrink Boots

Views: 65     Author: Site Editor     Publish Time: 2023-09-06      Origin: Site

Heat Shrink Boots

Heat Shrink Boots also referred to as Heat Shrink Molded Shapes, Wire Harness Boots, Heat Shrink Tubing, Heat Shrink Cable Boots, which are used in a wide range of industries such as military, aerospace, automotive, and industrial. Often used in conjunction with heat shrink tubing, molded shapes make it easy to fabricate wire and cable harnesses, offering strain relief, cosmetic coverings as well as environmentally sealed connections.

Heat Shrink Boots/ Heat Shrink Molded Shapes are produced by compression mold and transfer injection mold.Heat Shrink boots

Heat Shrink Boots Production Ways

Heat Shrink Boots can be produced by compression molded & Transfer Injection Molded methods.

Producing Heat Shrink Molded Shapes by compression molded.

Advantages: Mold tool is cost economic, and the compression molding process of heat shrink boots is more simple when compared to injection molding. By using good steel material, good located pins, and good mold-making equipment we can minimum the tolerance at 0.05-0.1mm .

Producing Heat Shrinkable Boots by Transfer Injection Molding.

AdvantagesMore Precise with Minimum Flash & Parting Line.

Mold with More Cavity and saving preparing time, one prepared material can fill many cavities. Compare with silicone compression molding, it is an advantage and can save a significant amount of time to put the material one by one on the mold.

Short Production Cycle: Silicone Rubber Transfer Molding Membrane Gasket offers shorter cycle times than compression molding and can also provide more consistency. The process allows for tighter tolerances and more intricate parts.

Wire Harness Boots

Heat Shrink Boots Production Challenges

Challenge 1: Short-shot;

Solution: Inlarge the injection gate or increase the number of injection gate

Challenge 2: Demold-failed at 70A

Solution: Reduce the shore A/ durometer to 50A, the higher shore A it is, the more difficult to demold, generally for such design structure, the recommended shore A is 30A.

Compression Mold Maker

Heat Shrink Molded Shapes

  • Heat Shrink Boot, T Transition

  • 2 Way Heat Shrinkable Boots

  • 3 Way Heat Shrink Boots

  • 4 Way Heat Shrink Tube

  • 5 Way Heat Shrink Molded Boots

  • Right Angle Shrink Boots

  • T Shape Wire Harness Boots

Heat Shrink boots

Heat Shrink Boots Applications

Heat Shrink Boots also referred to as heat shrink molded shapes, are used in a wide range of industries such as military, aerospace, automotive, and industrial. Often used in conjunction with heat shrink tubing, molded shapes make it easy to fabricate wire and cable harnesses, offering strain relief, cosmetic coverings as well as environmentally sealed connections.

Transitions & Strain Relief

Connector Backshell Covers

Cable Harnessing

Complex Multiway Transitions

Low Profile, Bulbous, and Lipped
Types for Use on Circular and D-Type

Heat Shrink Boots Installation

Xiamen Better Silicone mainly custom make Compression Mold, Transfer Injection Mold, LSR Injection Mold according to customers drawings or samples,

then produce silicone, rubber, LSR products. We also have plants to assemble whole device for customers.

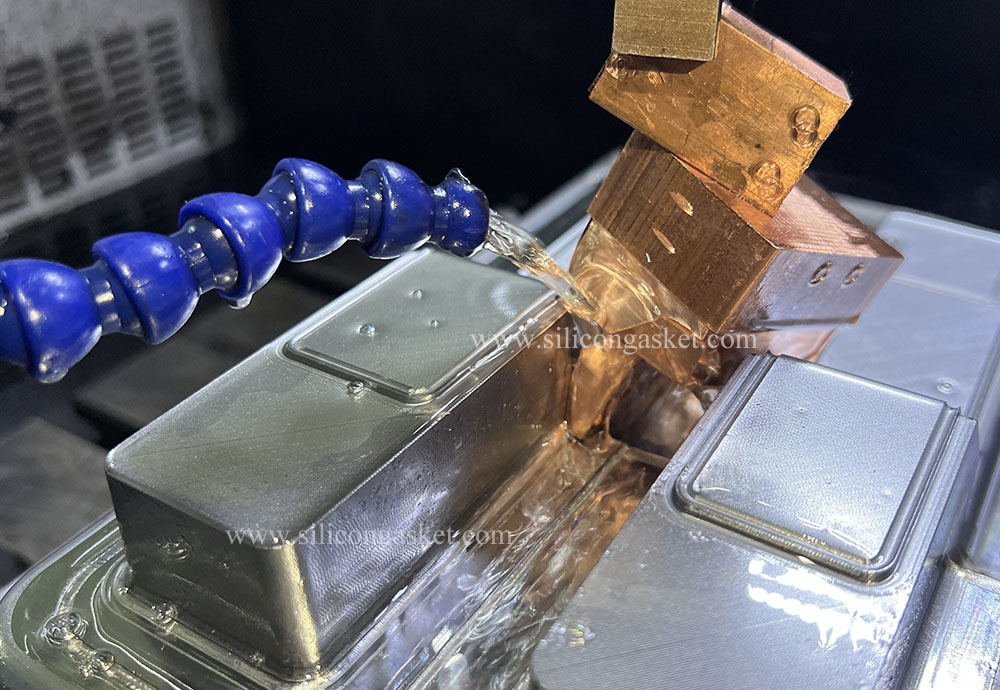

Cable Sleeve Manufacturer
