Hot: Umbrella Valve, Duckbill Valve, Flapper Valve, Silicone Valve & Rubber One Way Valve
 |
| Quantity: | |
|---|---|
One Way Silicone Valve, also known as Non-return check valve, Air flow control valve, including silicone umbrella valve, duckbill valve, diaphragm valve, flapper valve,dispensing valve, is a kind of one-way valve, pressure relief valve and non-return valve that are widely used as sealing parts in backflow prevention devices for controlling air or liquid flow in one direction and check flow in the opposite direction.

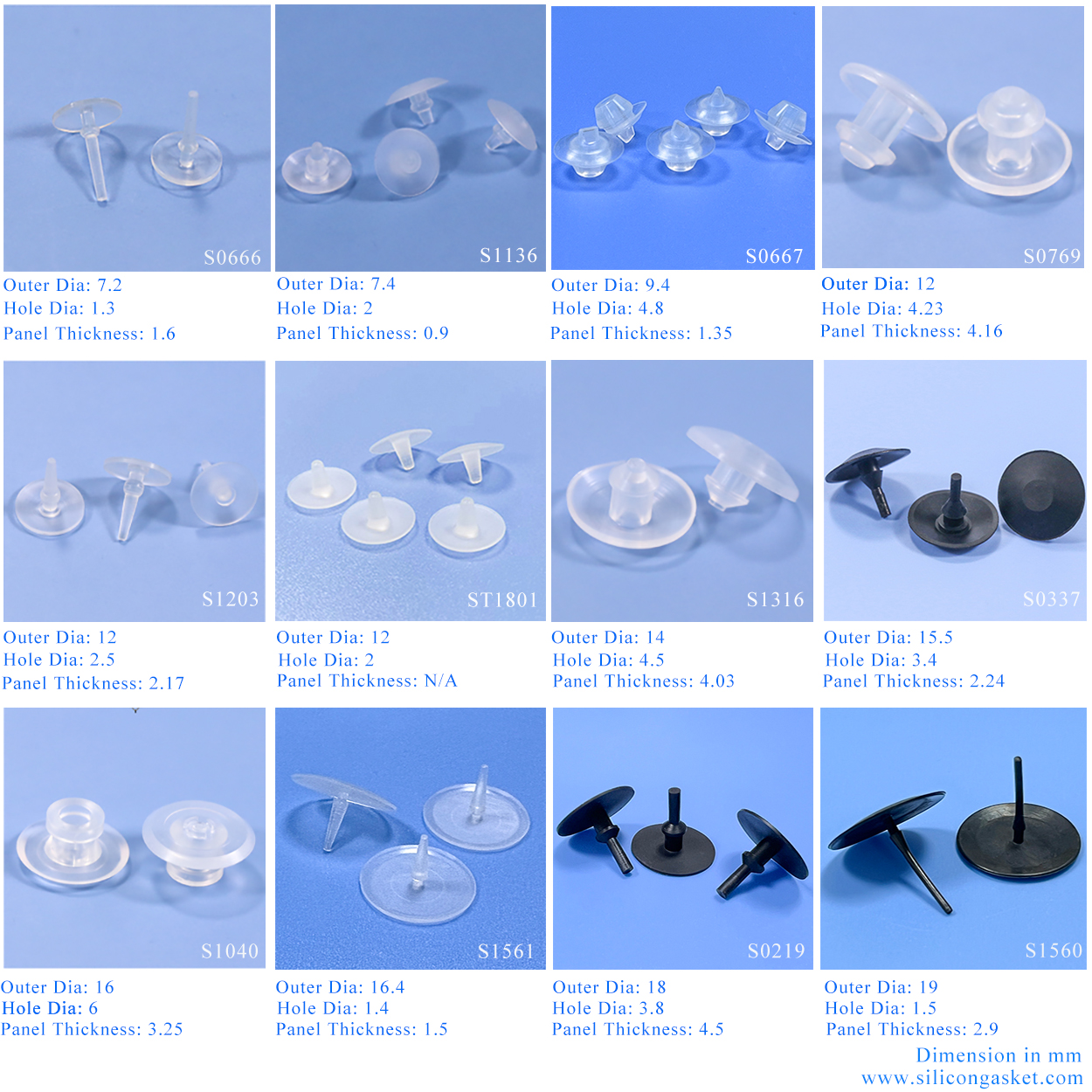

One Way Umbrella Valve:
Umbrella valve is a kind of elastomeric valve gaskets that have a diaphragm shaped sealing disk or an umbrella shape. One Way Umbrella Valve could be designed by different shape, size, thickness, and materials so as to meet its working condition and to make sure it can be opened and closed by the acquired minimum air pressure . And Pressure drop across the valve is controlled by the modulus of material, effective flow area, the amount of preload on the sealing edge, and the thickness of the umbrella skirt section.

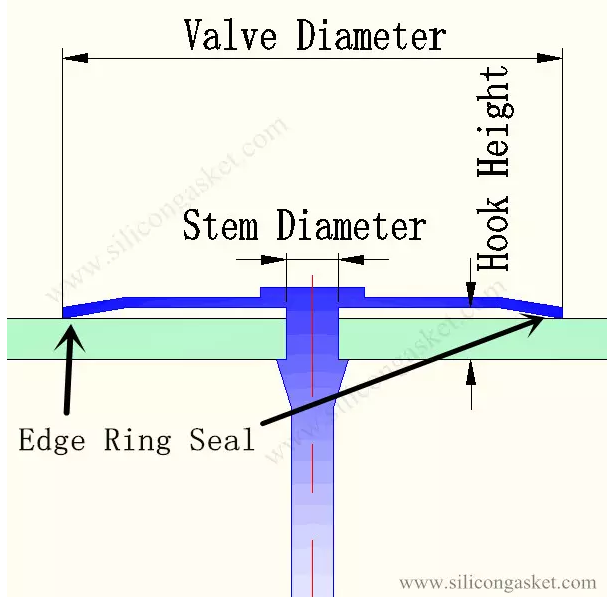

Umbrella Valve’s Design Depends on 3 Key Points:
To design a umbrella valve, there are three main design points.
1.The diameter of valve, which must be bigger than the hole to be fitted.
2.The hook height of valve, which must be equal to the height of the equipped part.
3.The stem diameter of valve, which should be equal to or smaller than the hole to be fitted.
One Way Duckbill Valve:
Duckbill valve is also a kind of One way valve, non-return valves that with duck shaped elastomeric lips by die-cutting, thus preventing backflow and allow forward flow. Compare with other type of Silicone one way valves, duckbill valves are self contained, which is to sat, the critical sealing function is an integral part of the one piece elastomeric component as opposed to valves where a sealing element has to engage with a smooth seat surface to form a seal. Therefore duckbill valves are easily incorporated and assembled into a wide variety of devices without the hassle or problems associated with the surface finish quality of mating seats and/or complex assembly processes.
Duckbill Valve’s Sealing Effect Mainly Depends on 3 Factors:
1. Depends on the Die-cutting Tool: It needs to be sharp enough, so that it can cut the silicone thoroughly to avoid die-cutting burrs, and to avoid the situation of "slit" doesn't close well.
2. Depends on the Permanent Compression Set Value: for this dispensing valve, we use high-elastic FDA Food Grade silicone, so its restoring forces is good, the dispensing valve can close & open easily without the distortion situation.
3. Depends on the Hardness: generally, dispensing valve with high durometer & hardness will have better restoring forces.
One Way Silicone Valve Application:
In Medical Field:
In virtue of its Air Check and Pressure Release function, One Way Silicone Valves like Duckbill valve and Umbrella valve are widely applied in many different fields. They are commonly applied in ventilator or manual resuscitator that connects with the face mask and patient breathing circuit in medical devices. Besides one way silicone valves like Silicone Diagram Valve and Silicone Flapper Valve are also used in Disposable Breathing Masks, Disposable Anesthesia Circuit, and numerous other flow control functions in medical devices.
In Automatic industry:
In addition, other type of One way silicone valve, like umbrella valves can be functioned as vessel vent valves, EPDM Drain Valves and such as for automotive fuel tanks and diaphragm pumps, portable fluid pumping device like micro air pump, and micro pump.
In Daily Supplies:
Silicone Umbrella valves are also used as pressure release valve in home appliances like coffee machine, toys, ect,.

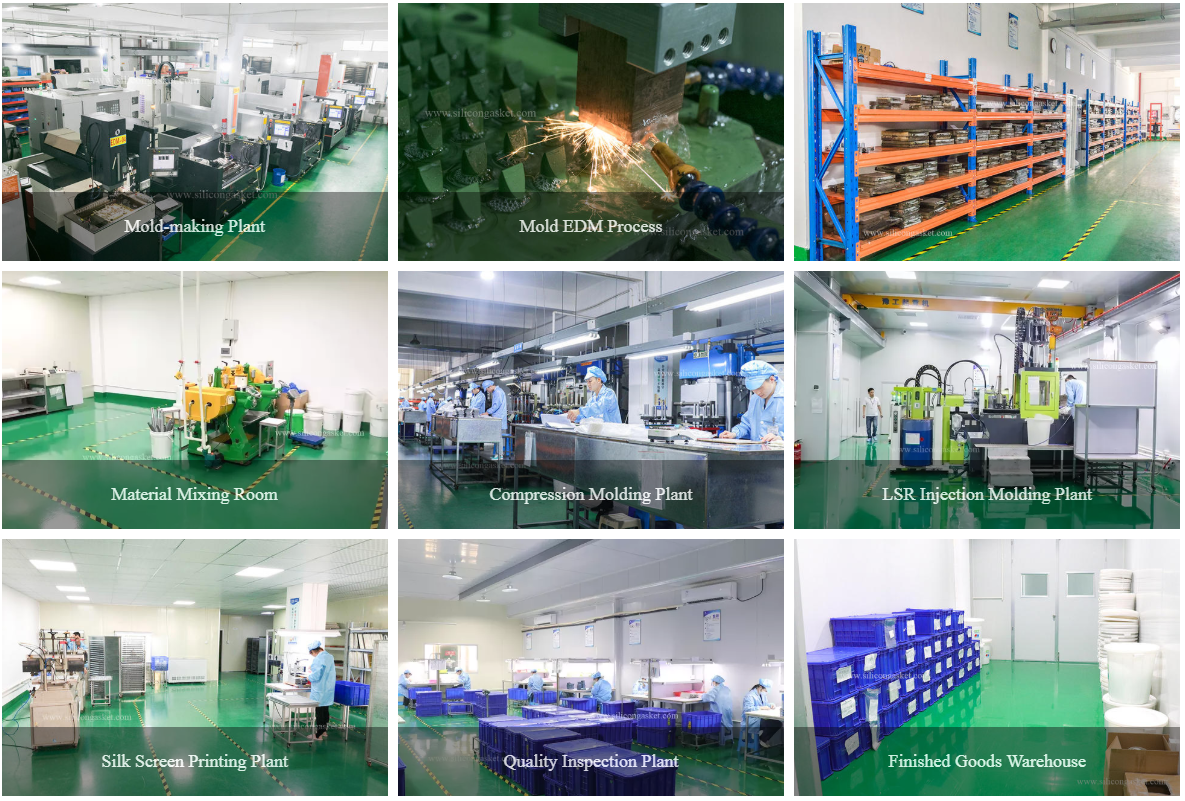

Our Company Advantages for Silicone One Way Valves Prduction
Xiamen Beter Silicone Company is specialized in making rubber compression molding & liquid silicone injection mold and producing different types of air & liquid controller silicon rubber one
way valves.
1. Precision Own Mold-Making Technology since 1998, one stop service for silicone rubber compression molded components, plastic injection molded and liquid silicone rubber molding components.
2. In-depth knowledge of elastomeric materials molded
3. In-depth knowledge of fluid control technology
4. Mature Experience of avoiding out of shape and damage from Production to Shipment Materials Choice, Design Improvement and Packing Information.
5. Rapid prototyping with full sizes production equipment and production material.
6. Experienced clean room and precision manufacturing technology.
