Silicone Sleeve for Glass Bottle

Silicone Bottle Sleeve, also known as Silicone Bottle Sheath, Water Bottle Sleeve and silicone baby bottle sleeve.
Bottles in our daily life are usually made of glass or stainless steel material, it's not convenient to hold when served hot drinks directly, therefore silicone bottle sleeve shows up with the properties of high temperature resistance.
  • SC-03

  • Better

Availability:
Quantity:

Silicone Sleeve for Glass Bottle

Silicone Sleeve for Glass Bottle, also known as Silicone Sleeve for Glass Baby Bottle, Silicone Sleeve for Beer Can, Silicone Insulation Sleeve and Silicone Protective Sleeve.

Bottles in our daily life are usually made of glass or stainless steel material, it's not convenient to hold when served hot drinks directly, therefore Silicone Water Bottle Cover shows up with the properties of high temperature resistance. Silicone Sleeve for Glass Bottle also serve as insulating gloves & case covers, which can insulate drinker’s hands from hot coffee and bottles, well-known as Silicone Cup sleeve and baby bottle sleeve. Besides, silicone cover has an anti-skid surface by sand blast and dermatoglyph process, which can increase the friction between hands and silicone sleeve to protect milk bottle, coffee cup or water bottle from drop and breakage. Silicone bottle sleeves are made from elastic silicone rubber by compression mold tooling, silicon injection mould and extrusion tooling with horizontal stripe.

Silicone Sleeve for Glass Bottle

Silicone bottle sleeve are made of high quality FDA Food Grade silica gel material, the material meets relevant safety certification (such as FDA, UL, ROHs); The temperature range of silicone bottle sleeve is from -40 to 230 degrees centigrade. The material is heat resistant, cold resistant, oxidation resistant, waterproof, moisture-proof, non-pressure, corrosion resistant, scratch resistant and skid resistant. The silicone sleeve is soft and comfortable, that protects your glass bottle well.

Our Company Better Silicone offer the one-stop service of Silicone Sleeve & Cover for your products. From sleeve & cover design support, manufacturability & moldability analysis, mold-making, sleeve & case production, your logo printing, silicone cover surface treatment & protection etc.

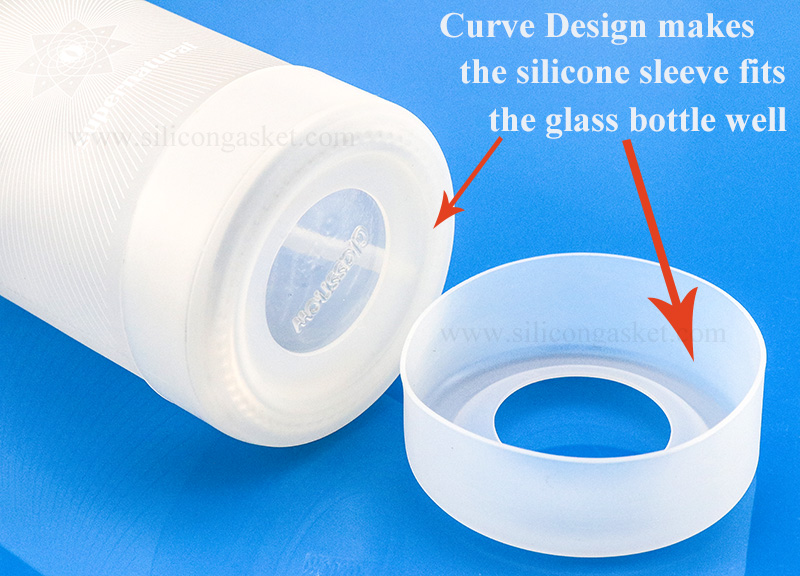

Silicone Insulation Sleeve

Silicone Sleeve for Glass Bottle's Types

Silicone Sleeve for glass bottle can be divided into 2 types: full silicone sleeve which "wrap" the whole bottle and half silicone sleeve with shorter height. For these 2 kinds of water bottle sleeve, mold-making ways are also different:

Mold-making way 1 for shorter silicone sleeve: Cheap & Easier to make, also the production process is easy and without parting line.

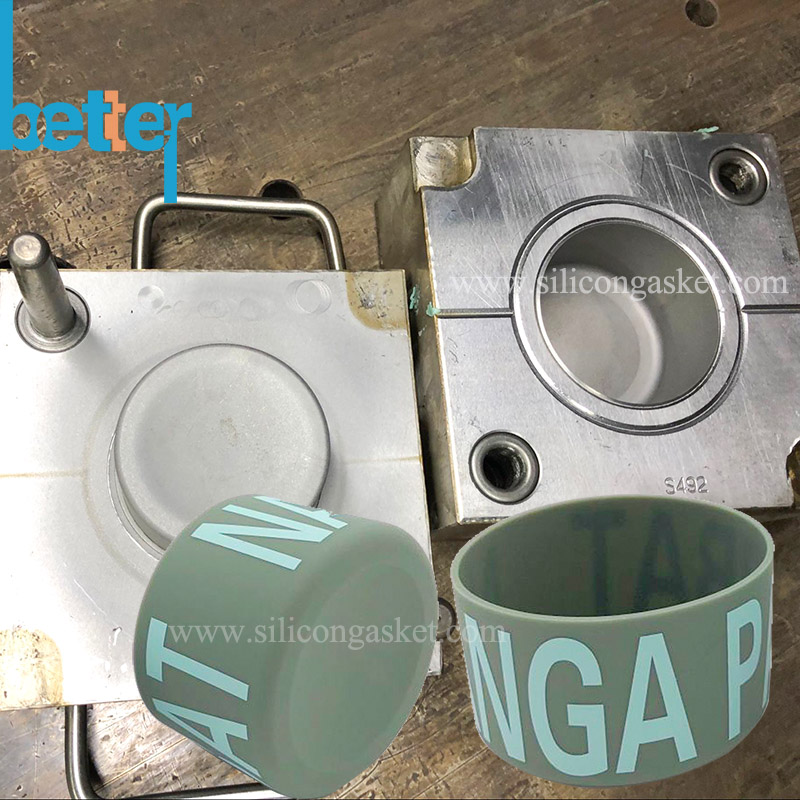

Silicone Cover for Bottles

Mold-making way 2 for full silicone sleeve: More Expensive & complicated, also the production efficiency is lower than way 1, for this kinds of mold-making way, there will be a parting line on the sleeve.

Glass Bottle Sleeve

Silicone Sleeve for Glass Bottle Production Process

Silica gel bottle sleeve uses high temperature vulcanized FDA Food Grade Silicone as the main raw material and produced by compression molding then moulding vulcanization:

1. Silicone Sleeve's design: Customers can offer the 3D & 2D design drawing for us, if don't have, let us know the basic dimension, our engineer can also help with the design.

2. Material Compression Moulding: Make a mold of silicone rubber sleeve, after the mold is well-finished, prepare the raw FDA Food Grade Silicone,  it includes raw FDA Food Grade Silicone mixing, color of improvement, calculate the weight of raw material, etc. Then make a preliminary silicone rubber sleeve by the silicone mold.

3. Surface symbols & logo treatment

  • Silk Screen Printing:  it means to add some symbols or logo on the surface by printing process, which can make the products more beautiful.

  • Logo Embossed on the surface, there are also many customers choose this kinds of production process, which means logo will be a little protruding from the silicone sleeves' surface as the followed picture shows.

  • Logo Debossed in the surface, generally customers seldom choose this production process, for debossed logo, the symbol will be get dirty easily & not easy to clear up.

4. Surface protective treatment: For shorter silicone sleeve, Matte Smooth Coating can make the silicone sleeve have a better tactile and anti-dust function. For full silicone sleeve, generally our customer will also require inside matte smooth coating (double sides). In this way, it will make the full glass bottle sleeve easy to "get on/off" from the bottle, so that users' can save the assembly time and will also have a better using experience.

5. Silicone protective covers’ flash-removed: because during the molding process, there will be some raw edges (flash) stick on products, so need to remove them by hand.


Xiamen Better Silicone Rubber Factory has rich experience in custom making silicone covers with various wall thickness to fit over your devices and seal your containers, according to your 2D/3D designed drawings or samples, which will meet your specifications and requirement.

Custom Water Bottle Sleeve quick quotation requirements:
1. Offer 2D/3D designed drawings, samples or tell us your ideas.
2. Materials demands: silicone, rubber or other materials
3. Material class demands: Common silcone, FDA food grade, FDA medical grade, etc.
4. Working environment: like working temperature, chemical environment, etc.
5. Hardness demands: 10-80 Shore A (Durometer)
6. Production environment demand: Clear Room (Dust-free Plant)
7. Package requirement
