Umbrella Valve Seal

Umbrella Valve Seals, also known as umbrella check valve, due to mushroom shape, and it also can be classified by different valve shapes, like with or without hook, air controller pressure demands with different thickness diaphragm edges etc. The umbrella seal will allow forward flow once the head pressure creates enough force to lift the convex diaphragm from the seat and so it will allow flow at a predetermined pressure in one way and prevent back flow immediately in the opposite way.

Quantity:

Umbrella Valve Seal

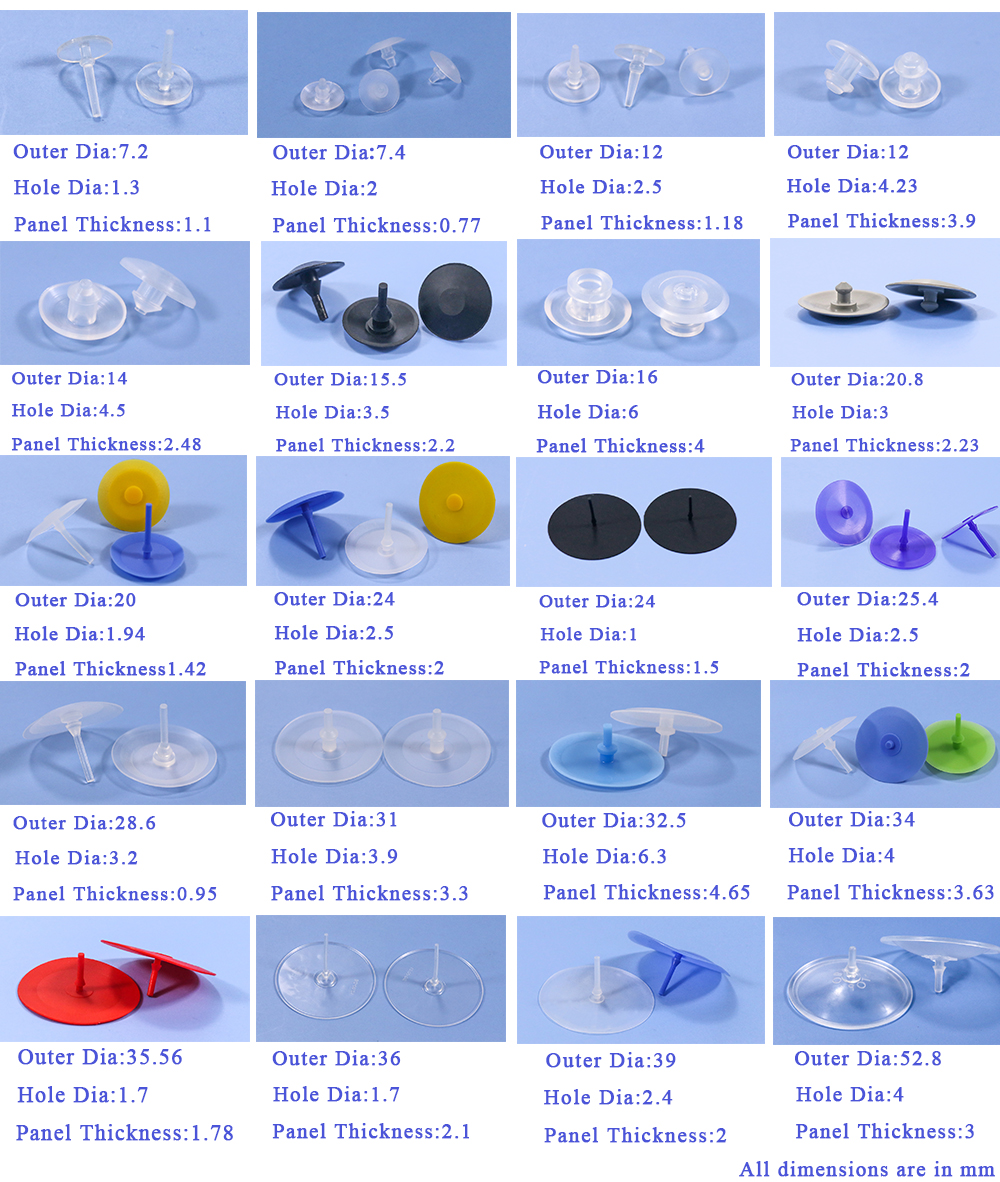

Umbrella Valve Seals, also known as umbrella check valve, due to mushroom shape, and it also can be classified by different valve shapes, like with or without hook, air controller pressure demands with different thickness diaphragm edges etc.  The umbrella seal will allow forward flow once the head pressure creates enough force to lift the convex diaphragm from the seat and so it will allow flow at a predetermined pressure in one way and prevent back flow immediately in the opposite way. Our air control valves can be universally applied in many different applications, whether in the health care, automotive, appliance or food and packaging industries. The following dimension of one way rubber valve are off-the-shelf, if they can't meet your needs, we can also custom made for you. The dimension of valve stem seals is from 12.2mm to 17.2mm

umbrella valve seals.jpg

drawing-14.5mm.pdf                           drawing-20mm.pdf                        drawing-24mm.pdf


mushroom valves.jpg

drawing-31mm.pdf                             drawing-32.5mm.pdf                    drawing-34mm.pdf


Umbrella Valve Seal Material

Umbrella Valve Seals are available in various elastomeric material including medical and food grade silicone and hydrocarbon resistant fluorosilicone rubber, FKM and Perfluorelastomer to handle a broad range of media and temperatures.

  • Common Silicone Umbrella Valve has good properties of heat resistance, weather resistance, electrical insulating performance, mainly applied in architecture, electrical, textile, automobile machines.

  • FDA Food Grade Silicone Check Valve Seal is a kind of silicone silicone rubber with properties of non-toxic, odorless and high/low temperature resistance. Chemical performance is stable, except caustic soda and hydrofluoric acid in normal, not react with any acid base salt. So FDA Food Grade Silicone valves are widely used in bottles, household appliances, etc.

  • FDA Medical Grade Silicone Mushroom Check Valve is mainly used in medical field with the good biocompatibility performance and won’t irritating to human tissues and non-toxic, non-allergic reaction and low body body rejection.

  • LSR & Liquid Silicone Rubber Umbrella Valve Seal: Unlike conventional rubber, LSR can withstand extreme temperatures without changing its properties, enabling high heat autoclave sterilization or use in very cold environments.

  • Fluorosilicone & FVMQ Umbrella Check Valve have good resistance of oil and strong acid | alkali |oxidant, and also have common silicone advantage like working temperature: -40oC ~ 230℃.

  • EPDM One Way Valves have excellent performance at Ozone aging resistance, weather aging resistance & heat resistance.

  • Buna N & Nitrile Rubber Check Valves performs excellently at oil resistance.

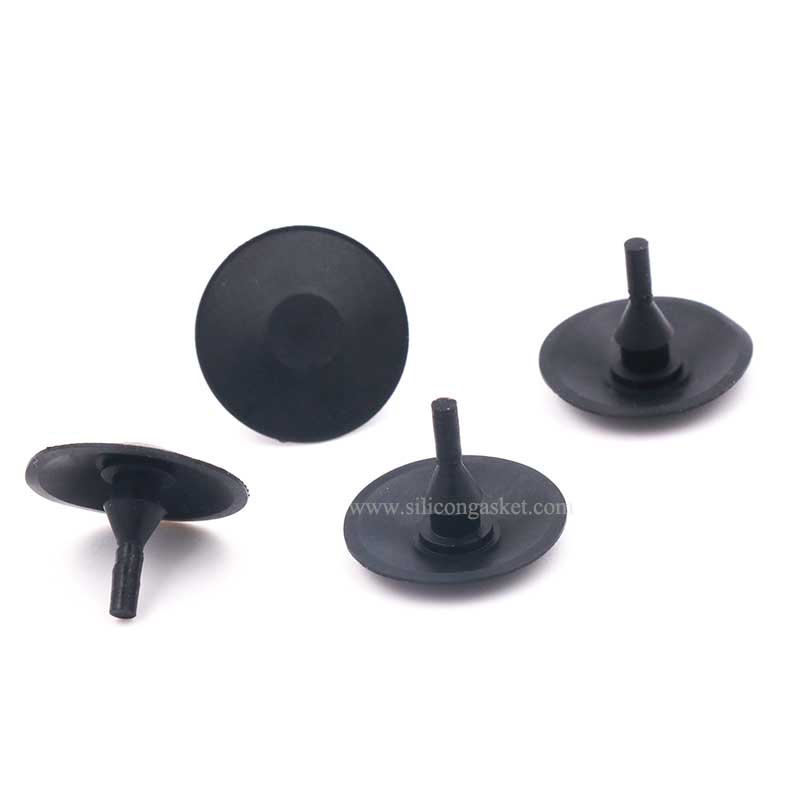

Mushroom Vlave

Umbrella Valve Seal Application

  • Umbrella Valve Seals are mainly used in air control device like medical resuscitators, diving equipments etc. Umbrella Check Valve are also used in liquid & water controller device like diaphragm pump, toilet products, automotive fuel tanks, outlet valves etc.

  • Automotive: oil pump & engines

Silicone Umbrella Valve

Umbrella Valve Seal Installation

The umbrella valve seal installation can be divided into 2 types:

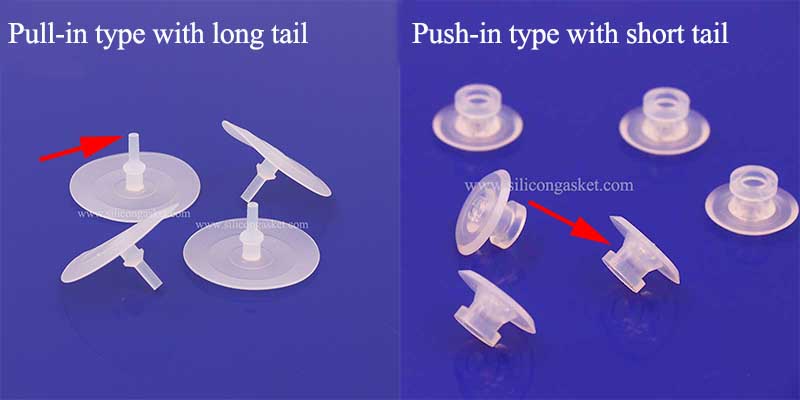

  • Pull-in type with long tail:  This is the most common and well suited for hand assembly. To install one places the long tail through a central bore in the seat, pull it and the valve pops in place.

  • Push-in type: This type is preferred when the placing of a long tail in the central bore is more difficult. For example deep down in the bottom of a cylinder. Or when the upstream side of  the valve is not accessible. For example when placing the valve in the wall of a tank where the inside of the tank is inaccessible.  This type can also be used in automatic assembly.

Silicone Check Valve

Umbrella Valve Seal Design Guides

Umbrella Valve Seals have three key designs & sizes and two key diaphragmatic surface demands:

Umbrella Shaped Diameter: bigger than one-way valve holes

Hook Height: same to plastic & metal panel's height

Stem Diameter: same or maller than assembly holes

Outside Diaphragmatic Surface: EDM process or texture surface for dust proof

Inside Diaphragmatic Ring Edge Surface: Polish or high-polishing for sealing function.

Umbrella Seal

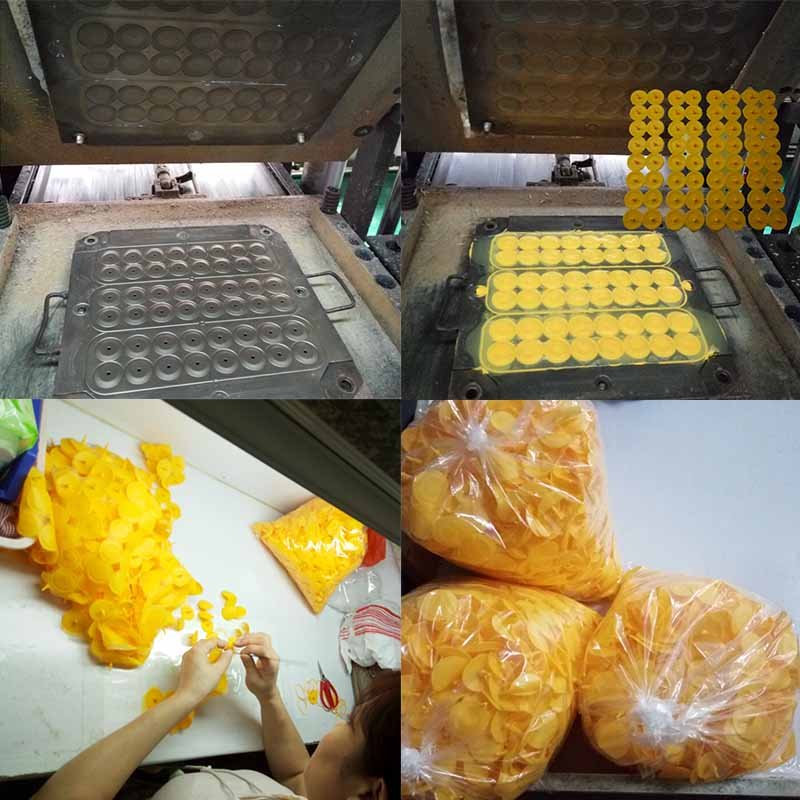

Notes: Umbrella valve seal with hook should be made of high tensile elastic silicone materials by three layer mold plates for avoid hook damage when production.

silicone one way valve.jpg

Our Company Advantages for Umbrella Valve Seals Production
Xiamen Better Silicone Company is specialized in making rubber compression molding & liquid silicone rubber injection mold and producing different types of air & liquid controller umbrella valves.

1. Precision Own Mold-Making Technology since 1998, one stop service for silicone rubber compression molded components, plastic injection molded and liquid silicone rubber molding components.
2. In-depth knowledge of elastomeric materials molded
3. In-depth knowledge of fluid control technology.
4. Mature Experience of avoiding out of shape and damage from Production to Shipment: Materials Choice, Design Improvement and Packing Information.
5. Rapid prototyping with full sizes production equipment and production materials.
6. Experienced clean room and precision manufacturing technology.

Xiamen Better silicone Rubber
