Custom Made Chloroprene Rubber Grommets

Chloroprene Grommets, known as Neoprene Grommet, CR Grommet. Chloroprene Rubber Grommets are a kinds of accessories of the wiring equipment. They are used for wires through in the middle of holes. The purpose is to protect the wires from being cut easily by sharp plate cuttings, and at the same time, it is dustproof and waterproof. It is widely used in various fields such as electronics, electrical appliances, machinery, sports equipment, furniture, and lighting.

Quantity:

Chloroprene Rubber Grommets


Chloroprene Grommets, known as Neoprene Grommet, CR Grommet. Chloroprene Rubber Grommets are a kinds of accessories of the wiring equipment. They are used for wires through in the middle of holes. The purpose is to protect the wires from being cut easily by sharp plate cuttings, and at the same time, it is dustproof and waterproof. It is widely used in various fields such as electronics, electrical appliances, machinery, sports equipment, furniture, and lighting.

Chloroprene Grommets

Chloroprene Grommet Features

Chloroprene Grommets material Chloroprene rubber (CR) is a synthetic rubber that is also known by the trade name Neoprene. CR has a good balance of properties, including good chemical stability and usefulness over a wide temperature range, high resistance to aging and ozone; low risk of glazing; better wear resistance than natural rubber (NR); higher cost than NR.

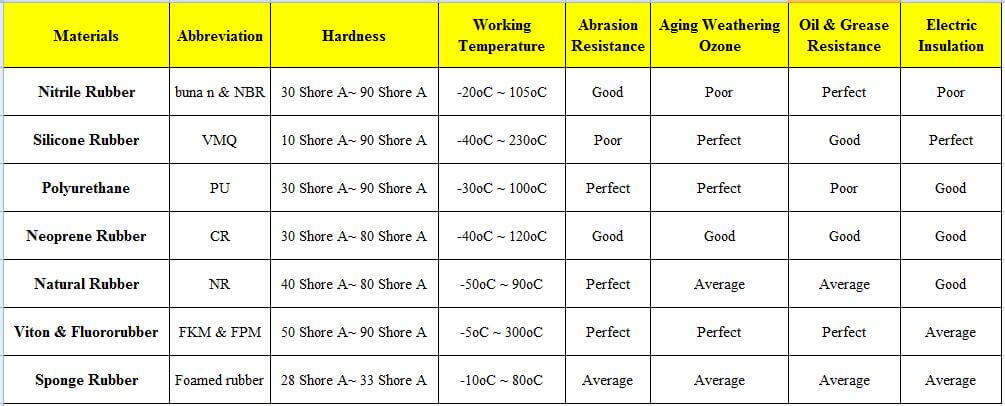

Rubber Grommet Material

Chloroprene Grommet Design Guide

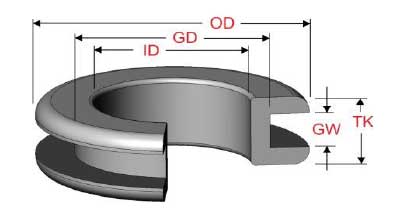

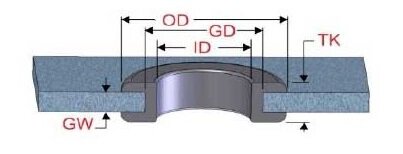

Rubber Grommet DesignRubber Grommet Seal Design

E- Chloroprene Rubber Grommet groove width should approximately match the thickness of the installation wall.

B- Neoprene Rubber Grommet groove diameter should approximately match the installation hole size.

A, C and D- CR Rubber Grommet dimensions are typically less critical depending on the application.

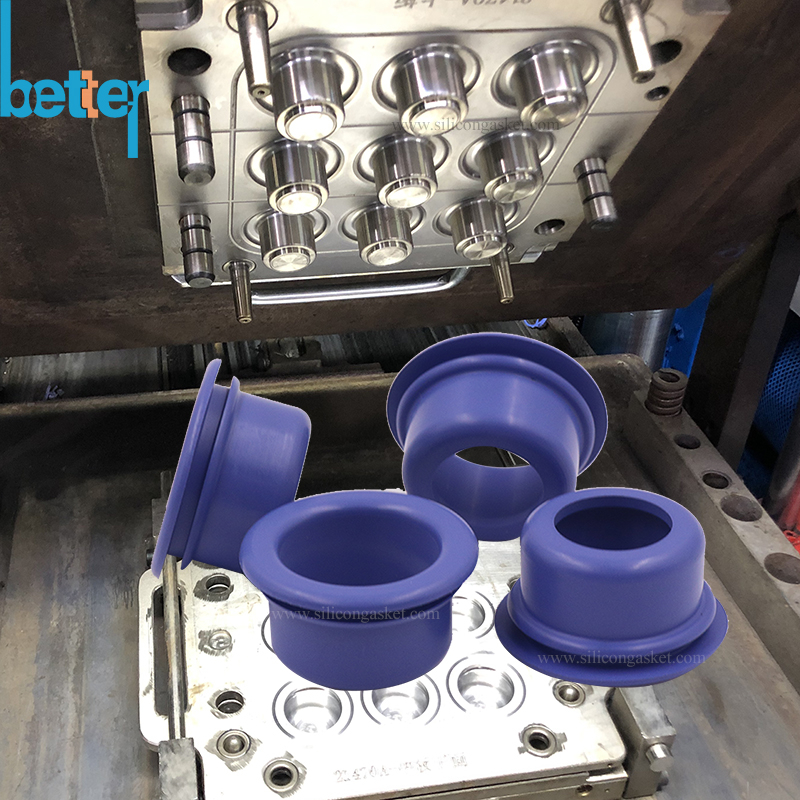

Chloroprene Grommet Production Process

Chloroprene Grommets designs with hole or undercuts, so it will require to add a middle plate. 2 plate mold tools consist of one parting plane and mold splits in two halves. Whereas three plate mold consist of two parting planes and mold splits in three sections as the followed picture shows:

Being a tool of increased complexity, the three-plate mould is, therefore, more time-consuming and expensive to manufacture than its two-plate cousin.

Chloroprene Grommet Application

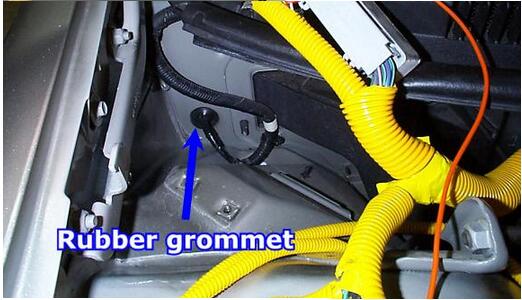

Chloroprene Grommets are usually used to cover the rough and sharp edges of a hole in metal. Rubber grommet seals are also important parts in automotive applications. They are used to protect lines, wires and cables from chafing or grazing on rough surfaces. They can also effectively reduce vibration and are used to seal different important under-the-hood and body applications. In general, rubber grommets seals are more commonly used to protect or cover holes and to protect cables or wires from sharp corners or edges.

wire grommet

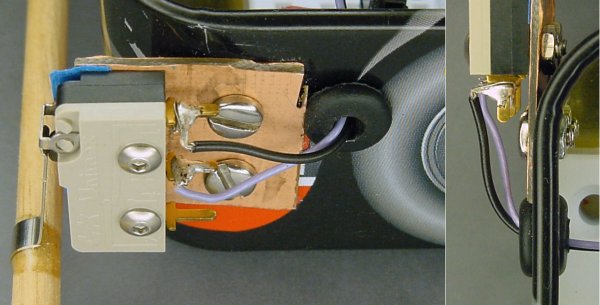

Rubber Round Grommet

Chloroprene Grommet Shapes

  • Rubber Sleeve Grommets

  • Snap Bushing Grommets

  • Square Rubber Grommet

  • Oval Rubber Grommet

  • Closed Rubber Grommets

  • Rectangular Rubber Grommet

  • Open Rubber Grommets

  • Rectangular Grommet

  • Round Rubber Grommets

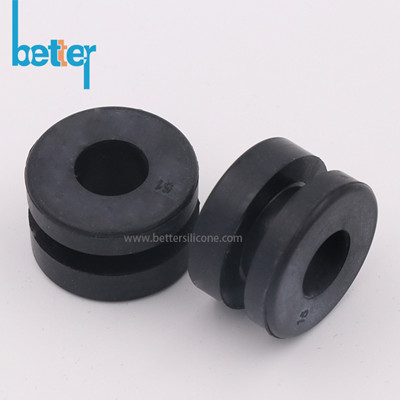

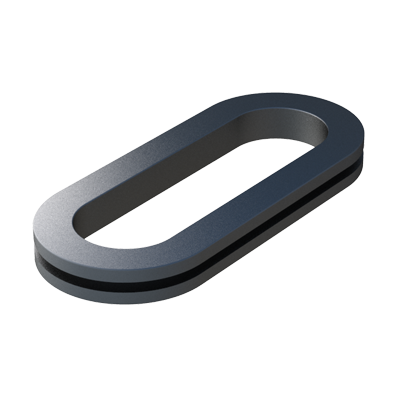

Round EPDM Rubber GrommetOval EPDM Rubber Grommet

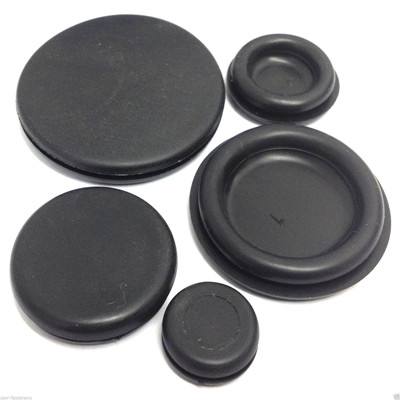

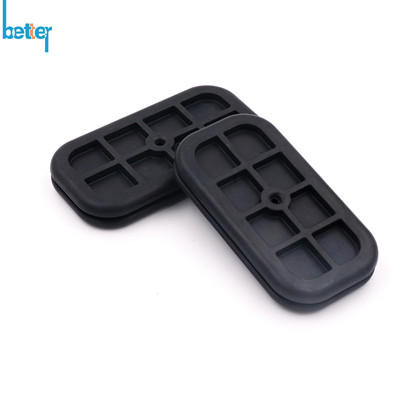

rectangular EPDM grommetClosed EPDM Rubber Grommet

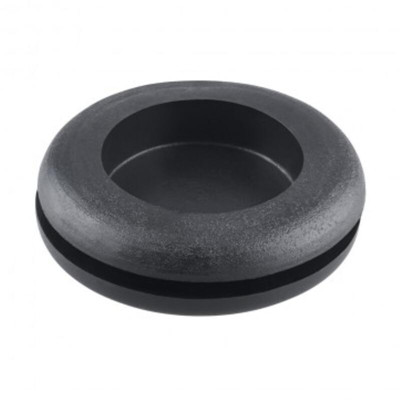

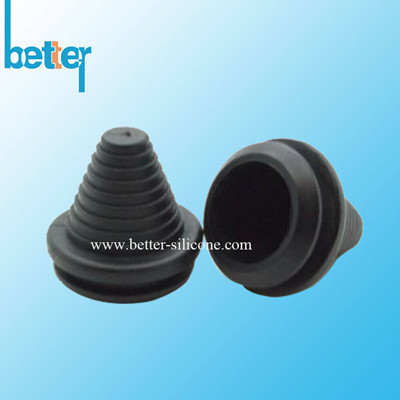

Tapered EPDM Rubber GrommetBlanking EPDM Grommets

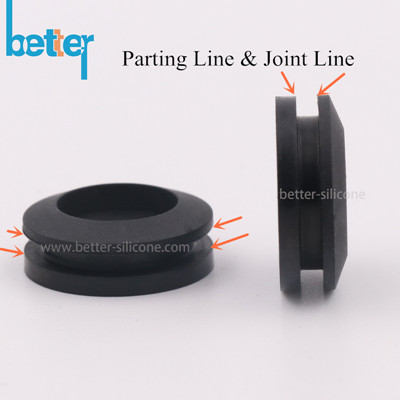

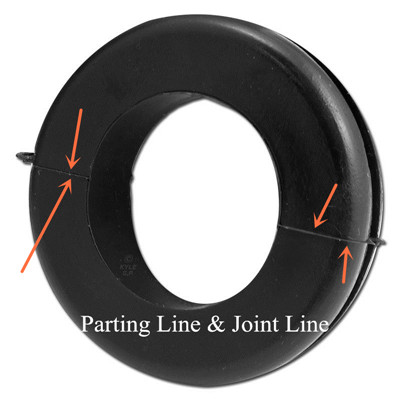

Chloroprene Grommet Parting Line

Chloroprene Grommets parting line & joint line location, not only depends on grommet designs & sizes, but also on grommets hardness & durometer. Grommet parting line demands affect grommet's molding price and unit price.

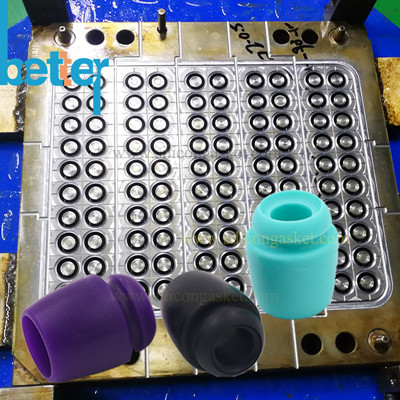

EPDM Rubber Grommet SealEPDM Rubber Grommet Plug

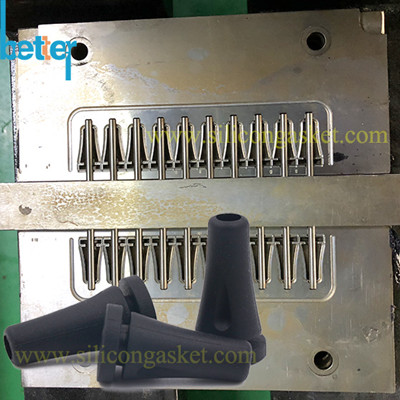

EPDM Rubber GrommetRubber Grommet Plug
