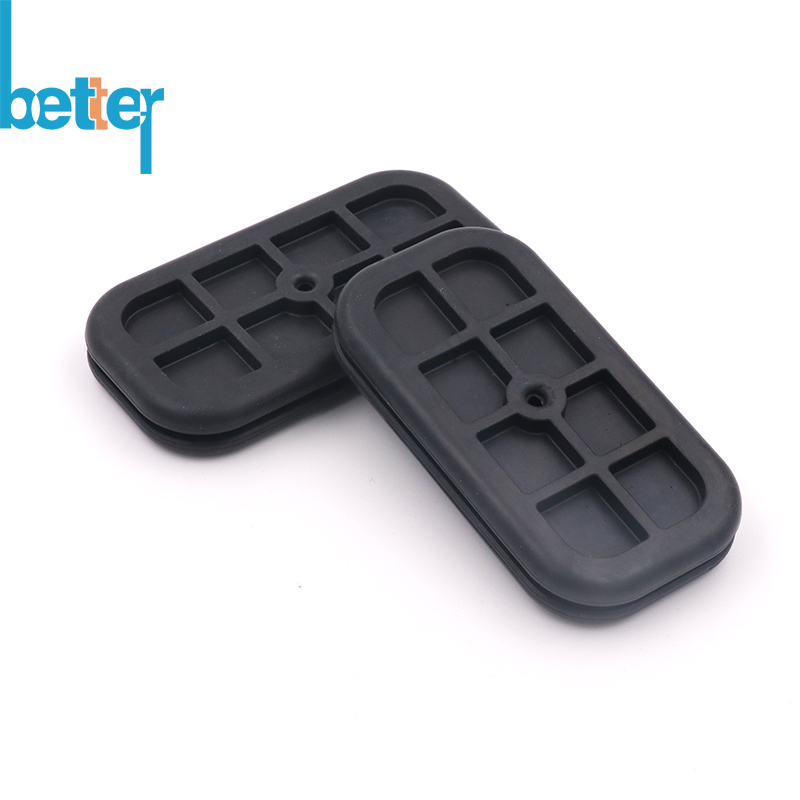

Neoprene Grommet

Neoprene grommet, also known as Neoprene Rubber Grommet, Chloroprene Grommet, Blind Rubber Grommet, Rubber Grommet Plug, which is a kind of accessories of the wiring equipment. There are used for wires through in the middle of holes. The purpose is to protect the wires from being cut easily by sharp plate cuttings, and at the same time, it is dustproof and waterproof. It is widely used in various fields such as electronics, electrical appliances, machinery, sports equipment, furniture, and lighting. Neoprene Grommet mainly produced by compression mold, at 20-70 shore A.

Quantity:

Neoprene Grommet

Neoprene grommet, also known as Neoprene Rubber Grommet, Chloroprene Grommet, Blind Rubber Grommet, Rubber Grommet Plug, which is a kind of accessories of the wiring equipment. There are used for wires through in the middle of holes. The purpose is to protect the wires from being cut easily by sharp plate cuttings, and at the same time, it is dustproof and waterproof. It is widely used in various fields such as electronics, electrical appliances, machinery, sports equipment, furniture, and lighting. Neoprene Grommet mainly produced by compression mold, at 20-70 shore A.

Neoprene Grommet

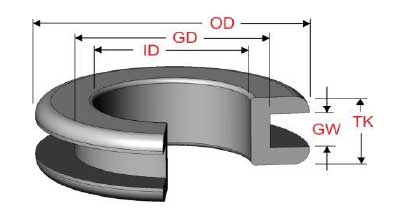

Neoprene Grommet Design Guide

Silicone Rubber GrommetCustom Rubber Grommet

GW - Neoprene Grommet Groove Width should approximately match the thickness of the installation wall.

GD - Neoprene Grommet Groove Diameter (GD) should approximately match the installation hole size.

OD, ID and TK dimensions are typically less critical depending on the application.

The general concept of a Rubber Grommet can be applied to a number of different challenges.  The inherent features of the shape allow a grommet to be press fit into an application and stay in place without adhesive or any additional fasteners. In general, there are three primary uses for custom rubber grommets:

   A. Vibration Control

   B. Protecting edges of a thru-hole

   C. Dust or weather seal around a wire or tube

Below is a detailed outline of critical items for each of the three uses.

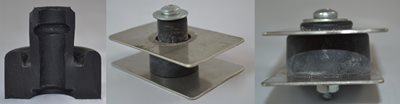

Rubber Grommet Design

Neoprene Grommet Material Features

Neoprene Rubber Grommets have excellent heat resistance, ozone aging resistance and weather resistance. It is suitable for outdoor products and work under the sunlight. As the flame retardant performance of neoprene is very good, it is also recommended to use this material for high flame retardancy products.

Neoprene Rubber Material

Neoprene Grommet General Shapes

According to the different application of rubber grommets, and the shape of the hole on the board, generally, the Neoprene Grommets are commonly used in the following shapes:

  • Round Rubber Grommets

  • Oval Rubber Grommets

  • Square Rubber Grommets

  • Blind hole Grommets

  • Oblong Rubber Grommets

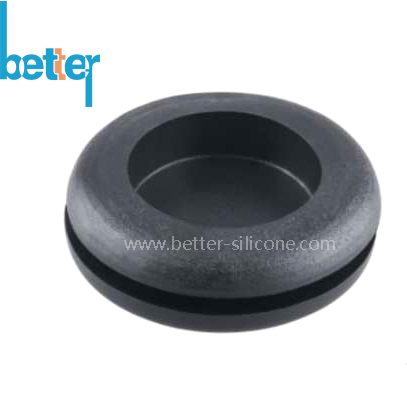

Automative Rubber Grommet Blind Blanking Grommet

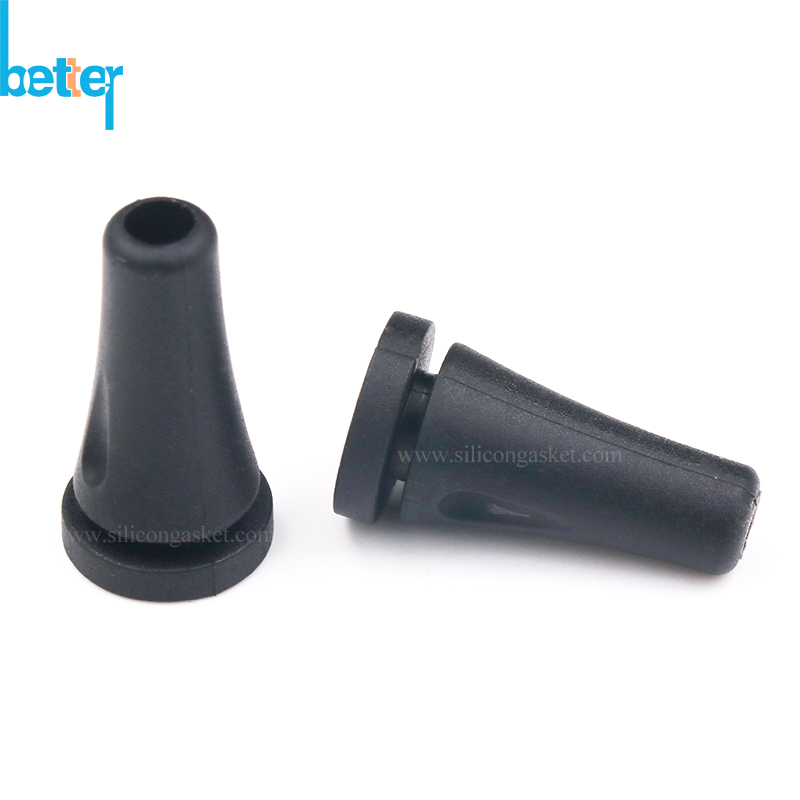

Neoprene Grommet Rubber Grommet Plug

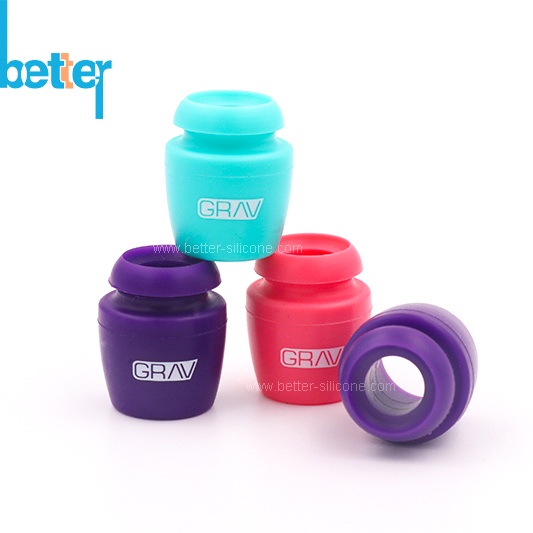

Rubber Cable GrommetSilicone Grommets

Why Choose Us for Manufacturing Neoprene Grommet?

  • We are a ISO certified company with well-established system.

ISO Certificate.pdf

  • We offer design support before project confirmed, our company has a strong team of engineers who can help you to set up the design.


  • We do production feasibility analysis for clients, and offer suggestions for manufacturing purpose.


  • We also help clients to improve their design for better function & practical application.


  • We offer good service before order confirmed & after-sales, no matter what questions it is, we're glad to help.

For Quotation:

please send us your 3D (STP or IGS format) & 2D drawing, and let us know your material requirement, and order quantity, then we'll evaluate for you, if your order quantity is large, we'll make large mold; if your order quantity is small, then we'll make small mold for you.

Our engineer will also help you to improve the design or offer advice for production.

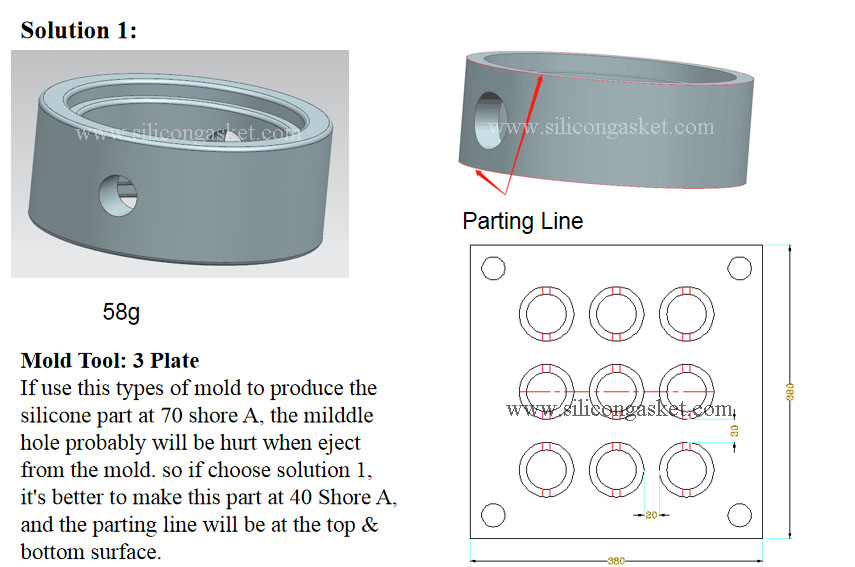

Rubber Grommet Mold

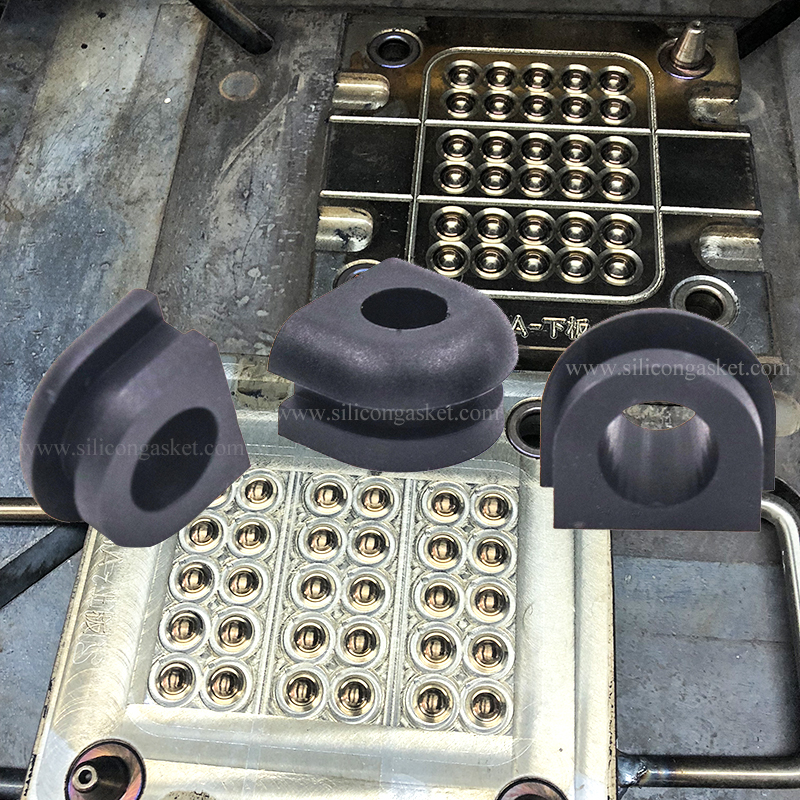

Neoprene Grommet Mold
