EPDM Bellows

EPDM Bellows, also known as EPR Bellows and ethylene propylene Bellows, are designed as a cover or expansion bellows to take over axial, lateral and angular movements in pipeline systems and protect components against alkalis, strong alkaline, detergent, hot water, steam, ozone, etc.

  • RB-2S
  • Better
  • 3924100000
Quantity:

EPDM Bellows | EPDM Rubber Bellows

EPDM Bellows & Rubber Bellows, also known as EPR Bellows and ethylene propylene Bellows, are designed as a cover or expansion bellows to take over axial, lateral and angular movements in pipeline systems and protect components against alkalis, strong alkaline, detergent, hot water, steam, ozone, etc.
EPDM Rubber Bellows and dust boots have wide sealing applications due to these excellent chemical resistance properties and its superior ozone resistance.
EPDM Bellows are usually produced by silicone rubber compression molding, extrusion moulding or rubber injection & transfer moulding.

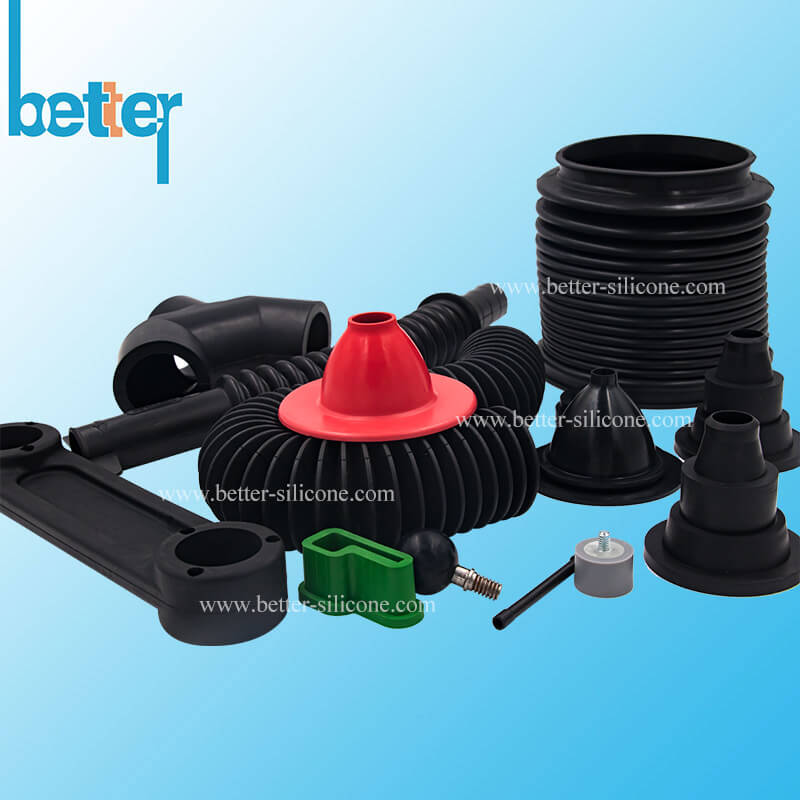

EPDM Bellows

EPDM Rubber Bellows Advantages:

  • Anti-ozone and weather resistance

  • Aging & Corrosion resistance

  • Waterproof and steam resistance: bathroom equipment, auto radiator && brake system.

  • Electrical insulation: wire & cable
  • Good heat resistance (dry heat): Working Temperature range -50oC-150oC. (-60oF-300oF)
  • Low density and high filling property: can be made into low-cost rubber compounds bue to absorption of lots of oils and fillings.

EPDM Bellows Disadvantages:
1. Slow curing rate
2. Poor self-adhension and mutual viscosity
3. Poor processability: difficult to blend with other unsaturated rubbers

4. Not recommanded for petroleum oils, mineral oil, die-ester lubricants or fuel exposure

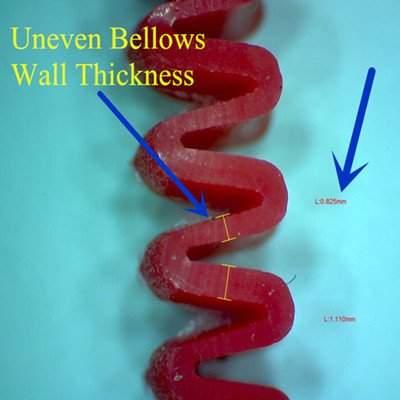

Flexible Expansion Joint & Bellows Main Manufacturing Process Quality Problems:

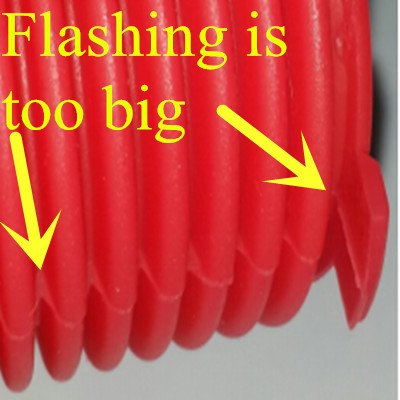

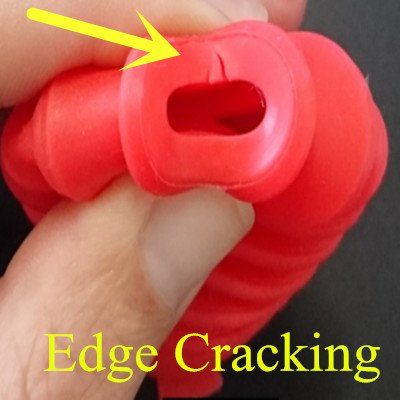

flexible expansion joint.jpgindustrial bellows.jpg

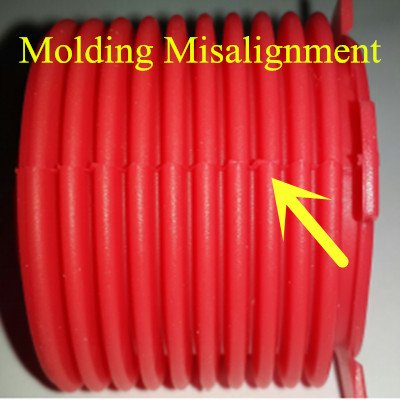

flexible bellows.jpgbellow expansion joint.jpg

Our Advantage for Rubber Bellows Production

  • Precision Own Mold-making Plant and Technology : Bellows Wall Thickness Tolerance can less: +/- 0.05mm and +/-0.1mm

  • In-depth knowledge of different elastomer rubber materials molded for rubber expansion joint & dust covers

  • Mature experience of flexible silicone rubber bellows quality controls:

a. Silicone Rubber bellows wall thickness sizes telorance: less +/- 0.05mm and +/-0.1

b. mini or less expansion joint flashing

c. mold maintenance in aim to up and down mold plate with horizontal stripe in exact position

d. good ejected molding to improve silicone bellows production efficiency

  • Rapid prototyping with full sizes production equipment and production materials.

  • In-depth knowledge of overmolded metal + silicone rubber bellows production

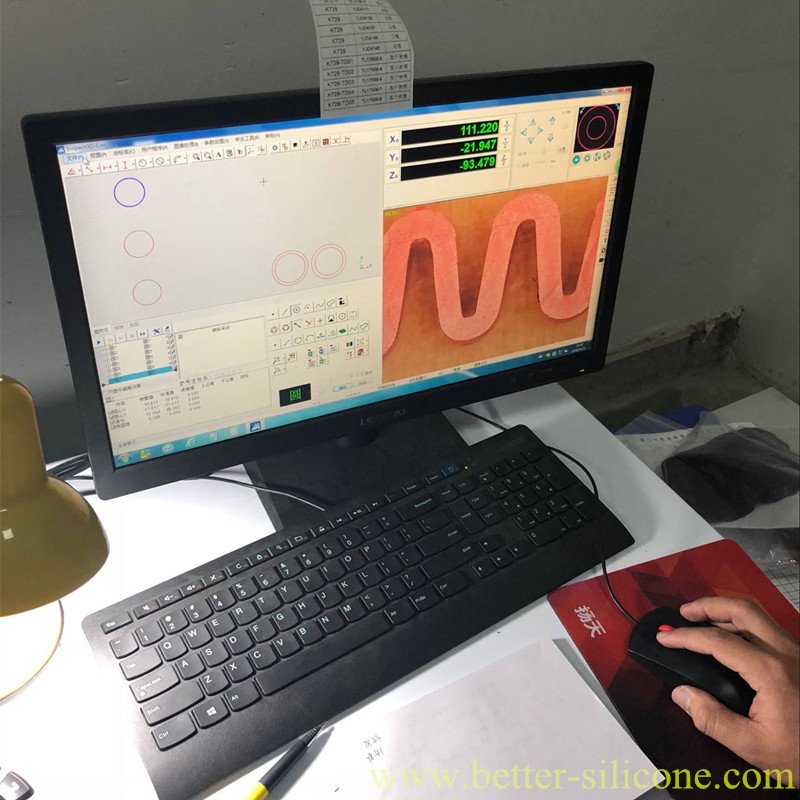

expansion bellows.jpg

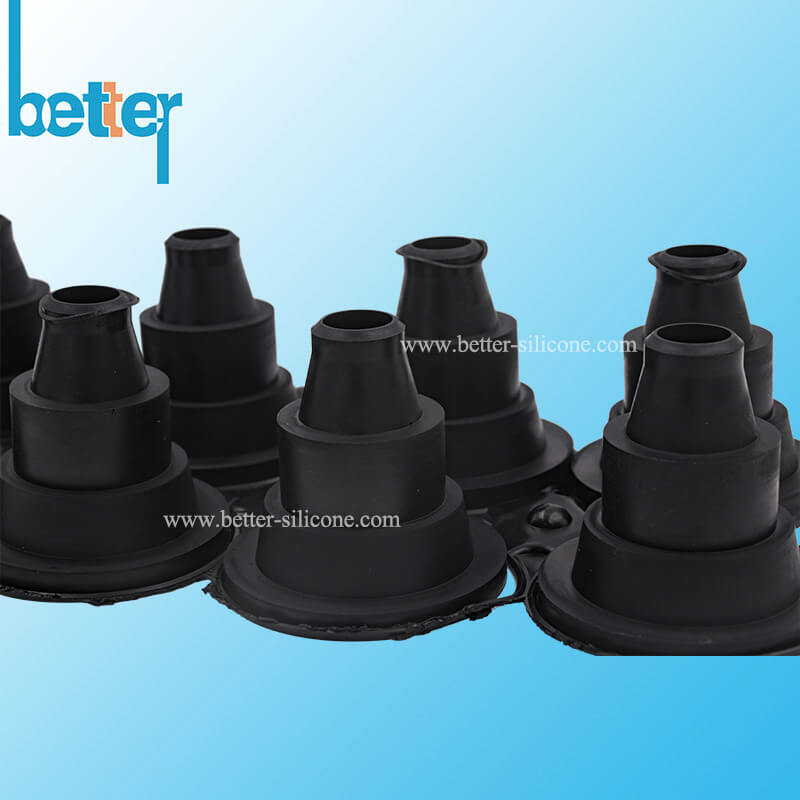

EPR Bellows

EPDM Rubber Bellows Catalogue, Shape and Construction
Straight Convolution Bellows & Boots

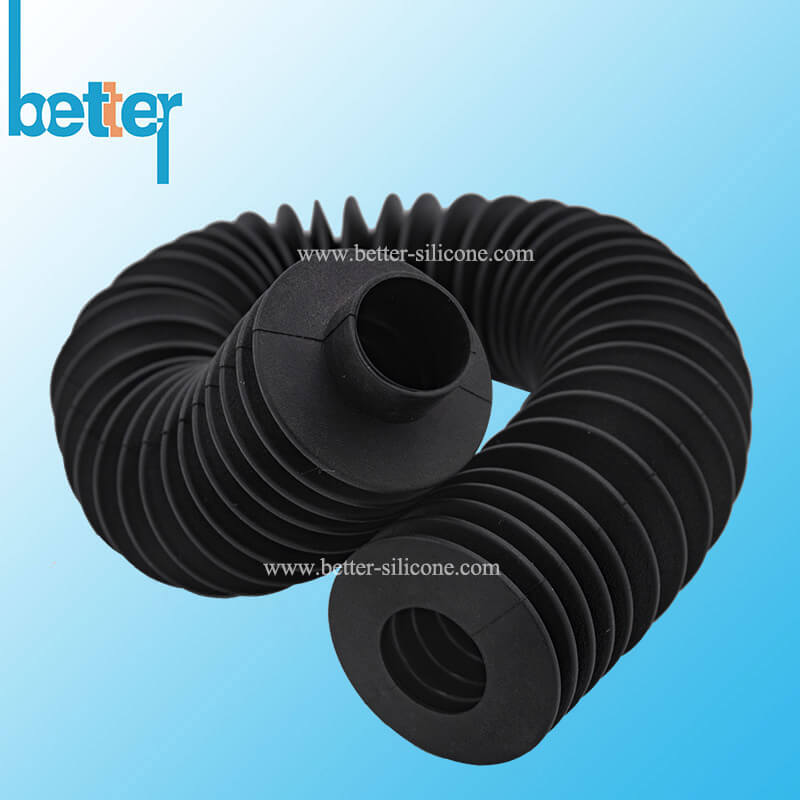

EPM Bellows
Tapered Bellows & Rubber Expansion Joint Covers
EPM EPDM Bellows

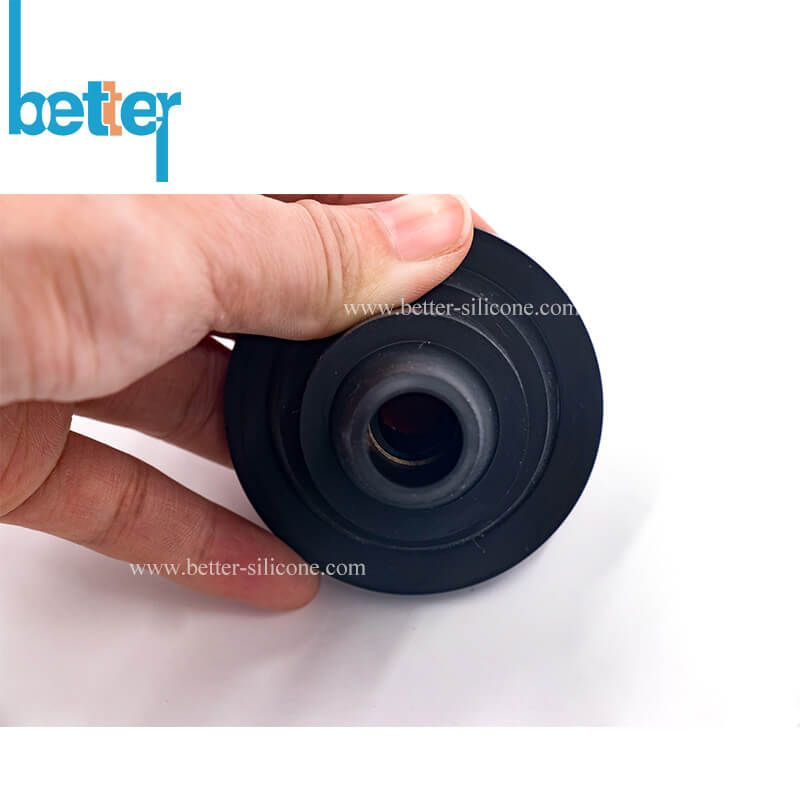

Metal + EPDM Overmolded
Bellows
Metal EPDM Bellows

Flanged Expansion Joint & Bellows with stainless steel or metal Clamp & Locks

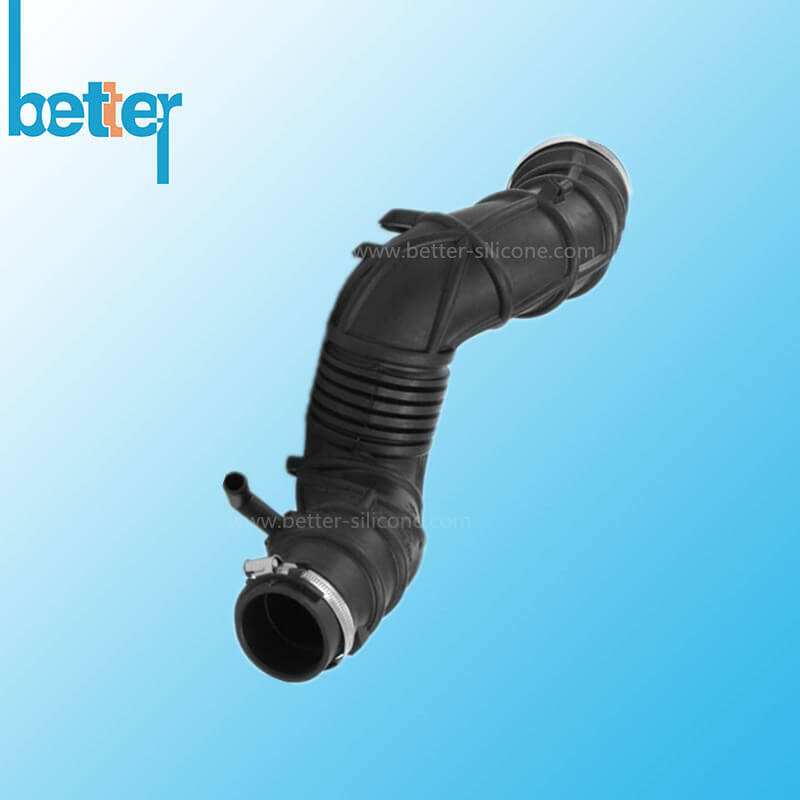

EPDM Pipe Bellows
Rubber Bellows & Expansion Joints Materials


Material Abbreviation Temperature Range Aging Weathering Ozone Resistance to Oil & Grease Water Swell Resistance  Flex-Fatigue Economy of Material Material Notes
Chloroprene(Neoprene) CR -40F to 250F Good Good Average Very Good Good exposure to refrigerants,can be compounded for FDA applications
Nitrile NBR -22F to 212F Poor Very Good Good Good Very Good Automotive Applications, Good Oil Proof
Ethylence-Propylene EPDM,EPM -60F to 300F Very Good Poor Very Good Good Very Good Outside Applications, Good Weather Proof
Silicone VMQ -75F to 450F Very Good Average Very Good Very Good Average Medical Applications
Fluo Rubber FKM 5F   to 390F Very Good Very Good Good Average Poor Rubber King, Widely Applications

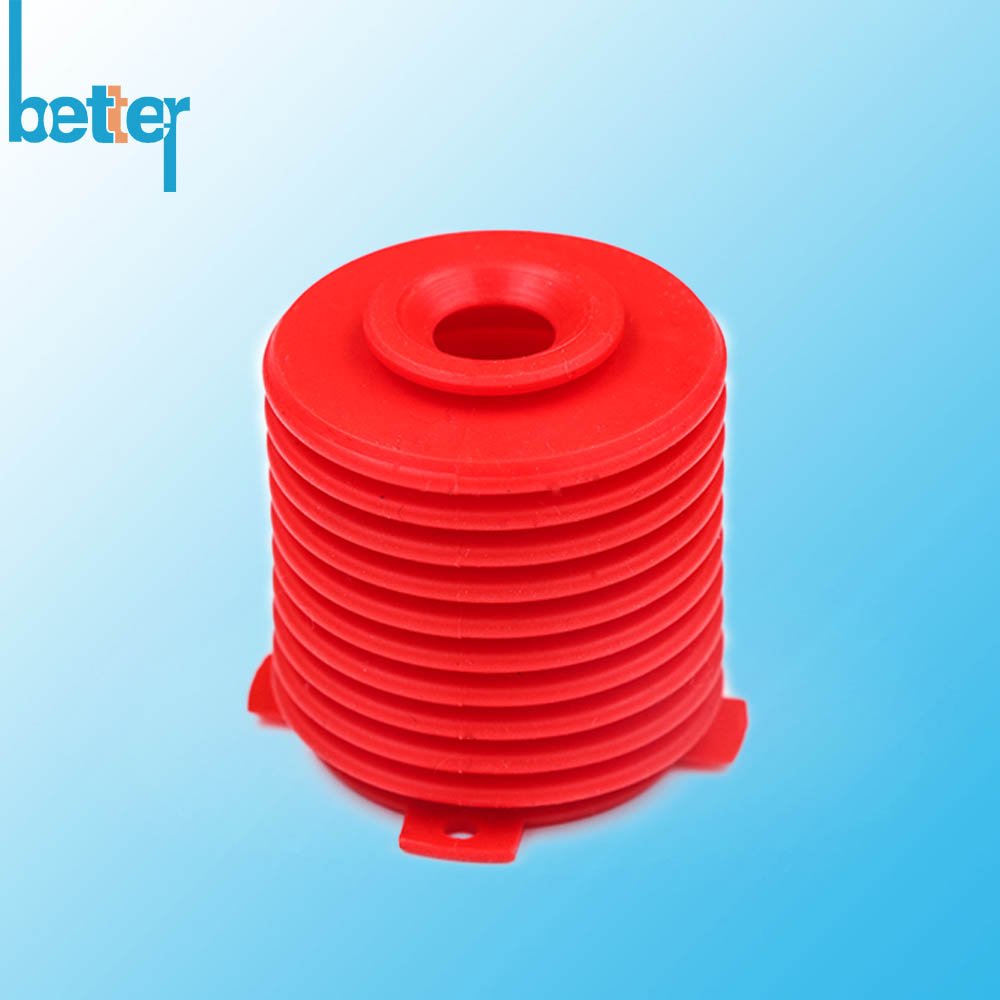

Rubber Bellows Expansion Joint.jpg
