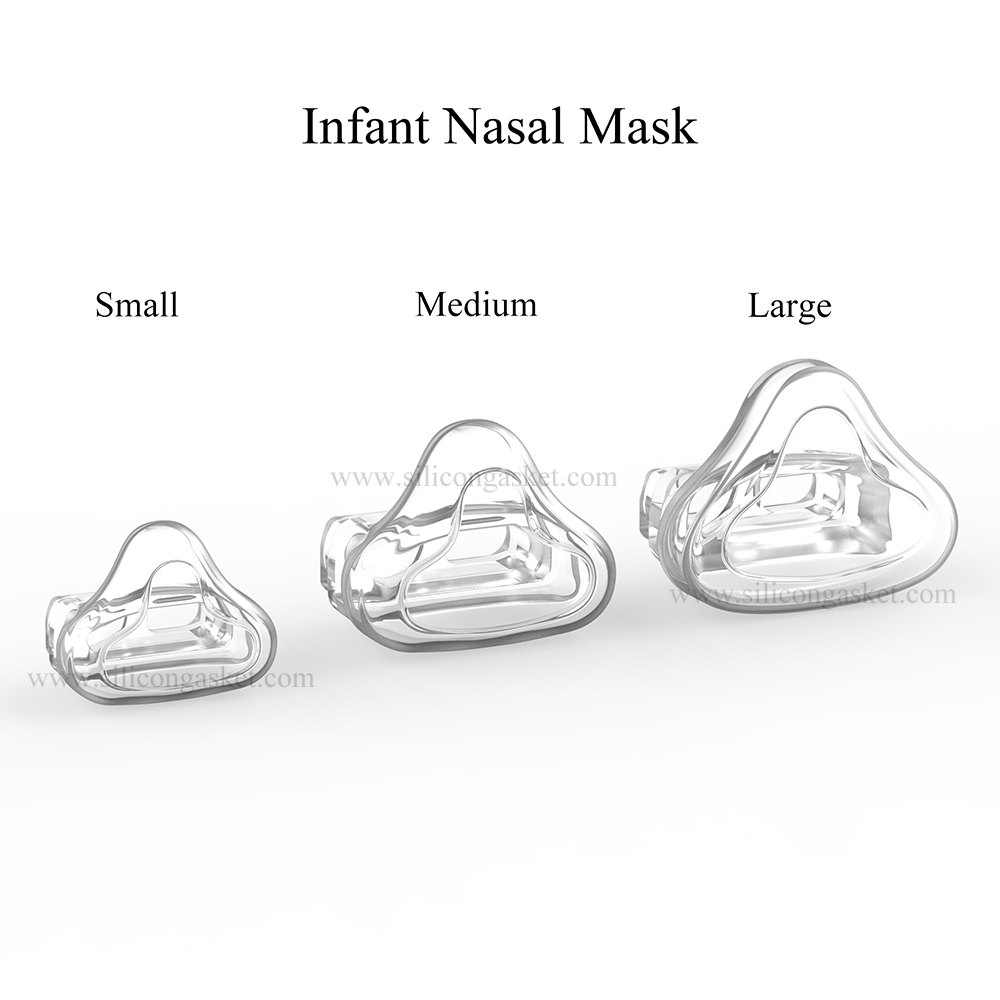

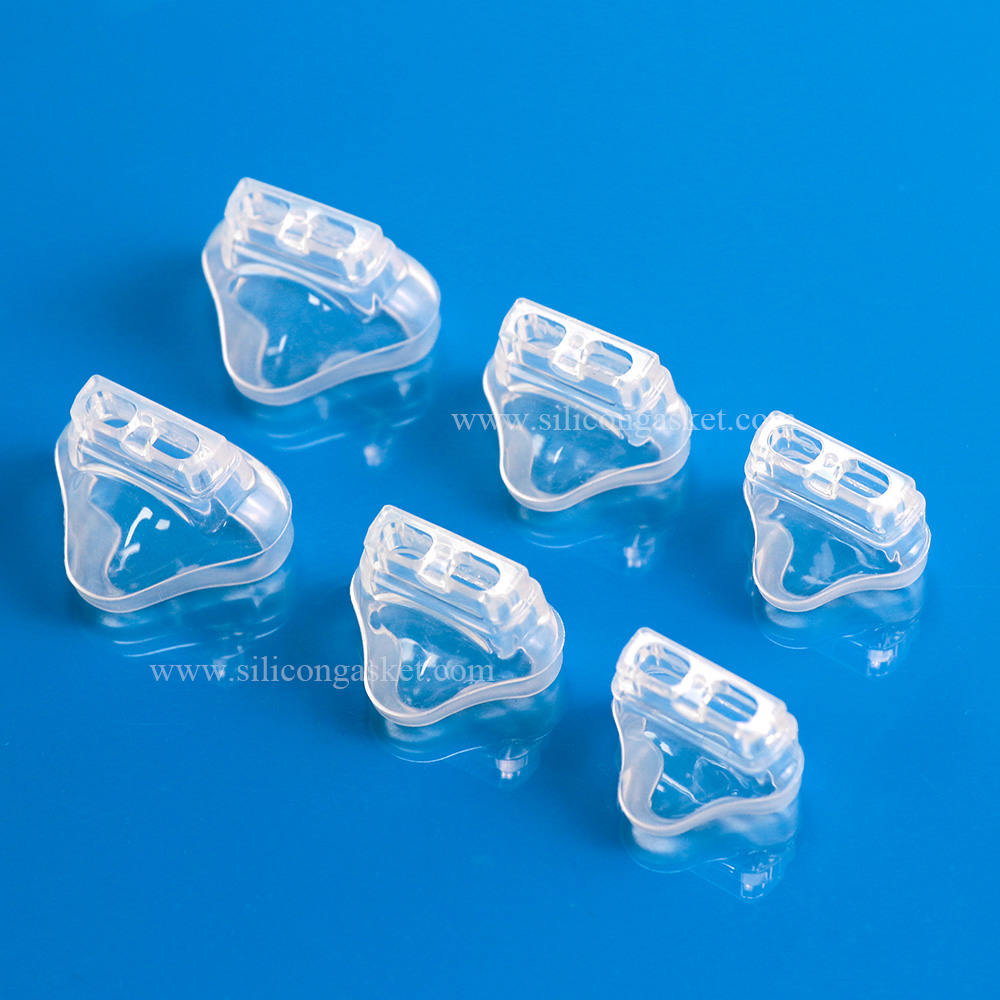

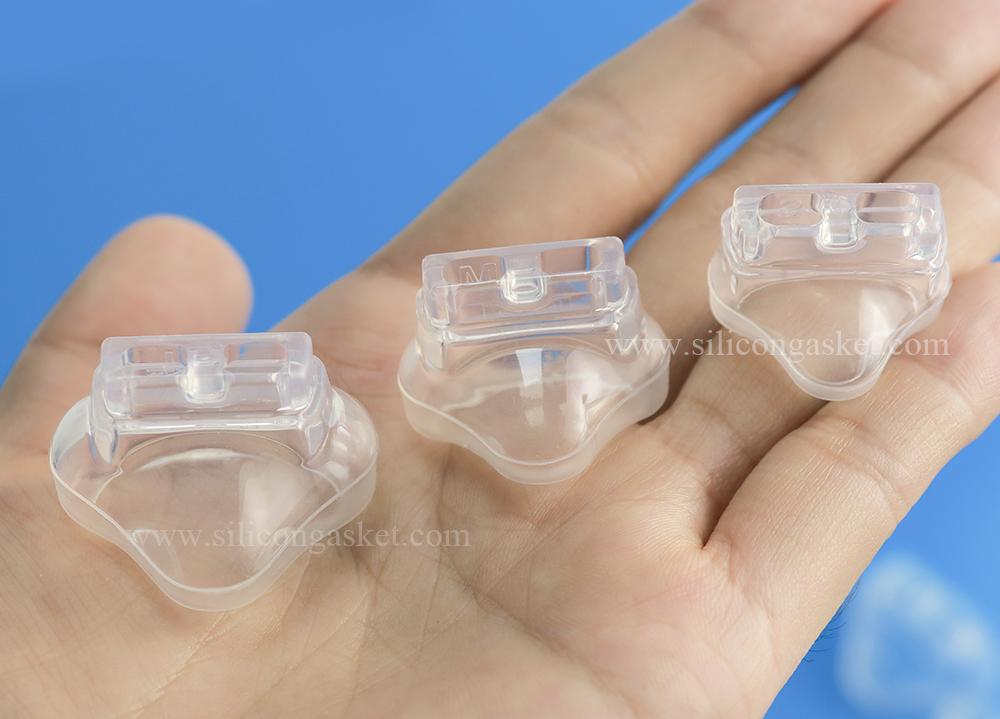

Infant Nasal Mask, Neonatal Nasal Mask, Baby Nasal Prongs are entirely made of soft liquid silicone, the cushion perfectly fits the facial characteristics of the patient and ensures minimal pressure points. With five fixation points, the headgear is specially designed to guarantee mask stability and perfect seal around the nose without over-tightening. Babies faces differ greatly in their shapes from those of adults, in particular with a prominent forehead, no defined nose bridge and a growing and fragile bone structure. All the mask features are designed to address such specificities. This type of mask can be customised without forehead support to adapt to the most demanding faces. Infant Silicone CPAP masks are mainly produced by Liquid Silicone Injection Molding with FDA Medical Grade Liquid Silicone Material.
CPAP Baby Nasal masks for use in delivering gases during Bubble CPAP treatment which are placed over baby’s nasal area. They are made anatomically fit for infant’s nares with size designation and having slots for fixing flow tube. Used for newborns with low surfactant growth and caters for any type of facial feature with various sizes.
Infant Nasal Mask Main Features:
The infant cpap masks are make from 100% Liquid Silicone, so they are very soft and comfortable with a unique and thin lip to guarantee both air tightness and minimal pressure on the face.
Silent and diffused exhalation port.
External port to adapt to all kinds of non-invasive treatments needs (signal measurement, oxygen supply etc.).
Rotary and flexible tubing at 360° for a total sense of freedom.

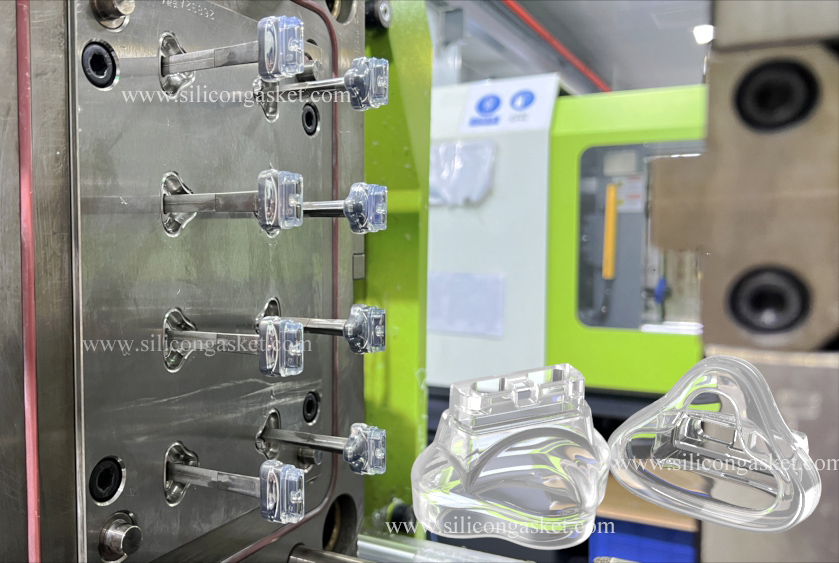

Why Choose LSR Molding for Infant Nasal Mask & Prongs
1. LSR Nasal Mask Mold is much better than compression mold, the material feeding system is different, also the temperature & pressure are controlled by machine, so the mold is precise, tolerance can up to 0.02mm.
2. Liquid Silicone Nasal Mask Prongs produced by Liquid Silicone Injection Molding is with high quality, no flash & burrs, if produce by compression mold, there will be probably big flash, once the burrs fall into the human body, that would be not OK; and the parting line will also bigger than the Baby Nasal Mask produced by Liquid Silicone Injection Molding, the patients will feel uncomfotable during use. Because the injection molding’s material feeding system is different from compression molding, the temperature, pressure and injection way is controlled by the machine.
3. Liquid Silicone Material is safer than solid silicone for compression molding. LSR is resistant to bacteria growth and won’t stain or corrode other materials. (during production process, solid silicone for compression molding needs to put on the mold manually, and sometimes in order to make the part eject from the mold easier, production people will spray mold release on the mold, while if produced bu injection molding, there won’t be this kinds of concerns, because the whole process is completed by machine. )
4. LSR Material can be fully cured, so it is more safe, biocompatibility is good. The material can be sterilized via a variety of methods, including steam autoclaving, ethylene oxide (ETO), gamma, e-beam and numerous other techniques, meeting all required approvals such as BfR XV, FDA 21 CFR 177.2600, etc. The followed are the material data sheet for your reference:
LR 3038 Liquid Silicone Rubber TDS ELASOSIL.pdf
Xiamen Better Silicone has extensive experience in custom manufacturing a wide array of respiratory & anesthesia products, include CPAP Total Face Mask, Full Face Mask, Nasal Mask, Laryngeal Mask, Oxygen Mask, Nebulizer Mask, CPAP mask etc.
