Buna n Expansion Bellows

Buna n Expansion Bellows, also known as Buna n Rubber Expansion Bellows & NBR Nitrile Expansion Bellows are mainly used as a cover or expansion joint for connecting moving parts and protect inner components against oil, dust, water, grease, acids, bleaches, etc, also called protective cover and expansion joint bellows.

  • SRB-05
  • Better
  • 3924100000
Quantity:

Buna n Expansion Bellows

Buna n Expansion Bellows, also known as Buna n Rubber Expansion Bellows & NBR Nitrile Expansion Bellows are mainly used as a cover or expansion joint for connecting moving parts and protect  inner components against oil, dust, water, grease, acids, bleaches, etc, also called protective cover and expansion joint bellows.

Buna n Expansion Bellows are produced by silicone rubber compression molding, extrusion moulding or rubber injection moulding.

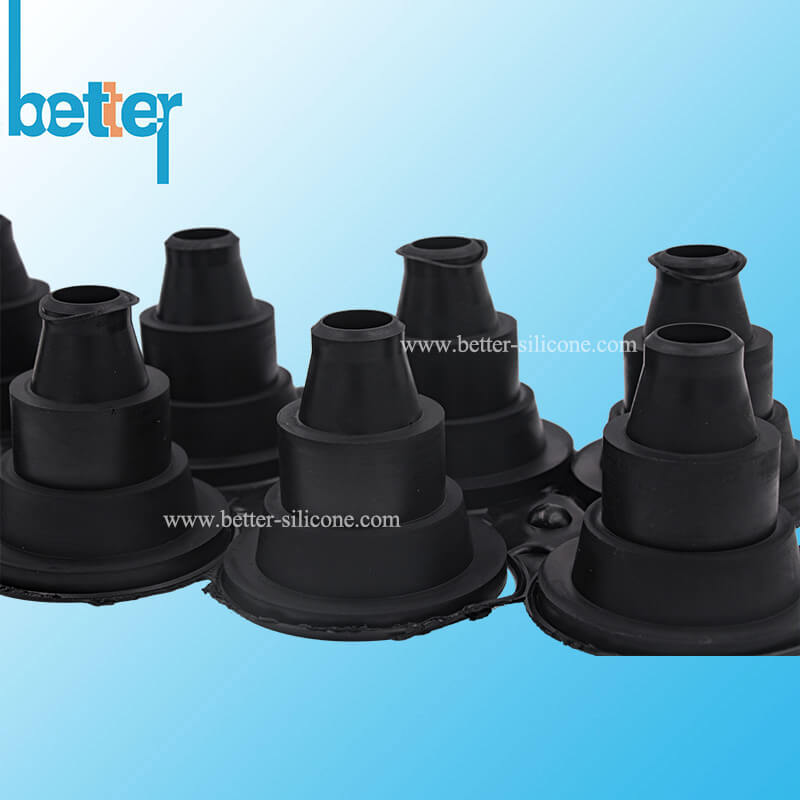

buna n Expansion Bellows

Buna n Expansion  Bellows Advantages:
1. Excellent Oil-proof:
Excellent oil resistance ranks only second to polysulfide rubber, acrylate and FKM
2. High tensile strength and wear resistance.
3. Good Heat Resistance:
Working Temperature ranging -35oC-110oC. (Short-period working: 120oC)
4. Good air tightness
5. Strong Adhesion

Buna n Expansion   Bellows Disadvantages:
1. Poor ozone resistance, against storage
2. Poor electrical property
3. No resistance to aromatic solvents, halogenated hydrocarbon solvents and ketones & esters solvents
4. Low elasticity

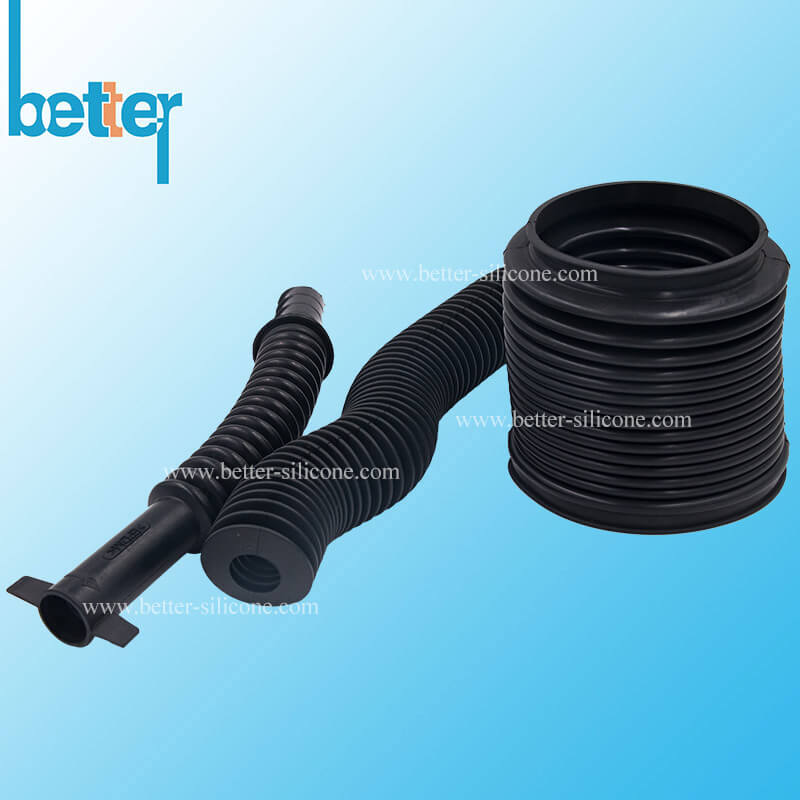

Buna n NBR Expansion Bellows
Buna n Expansion  Bellows Main Struction and Shape

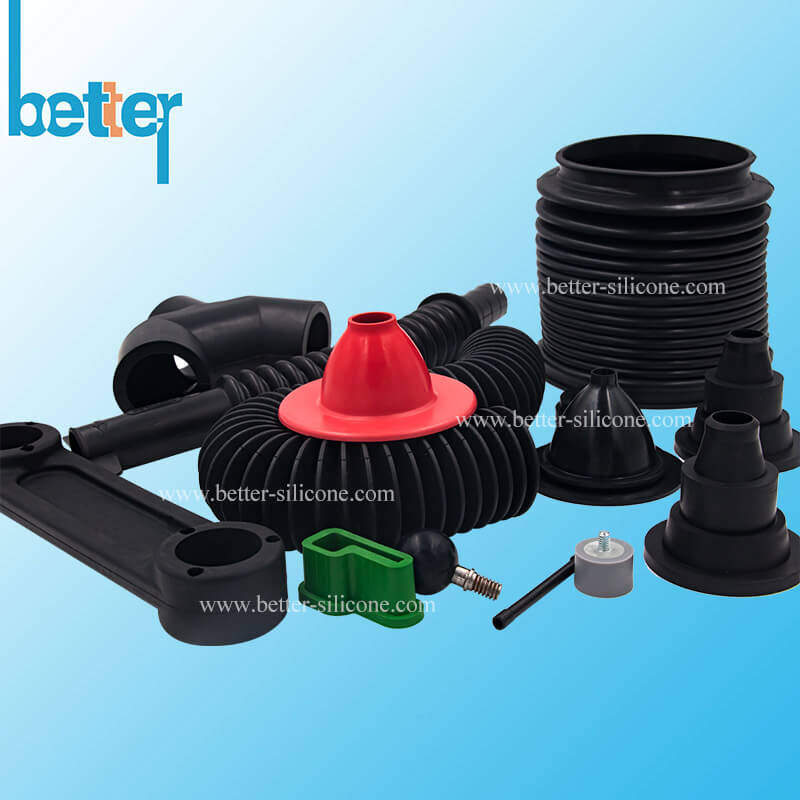

Buna Rubber Expansion Bellows
Straight Convolution
Buna n Expansion  Bellows

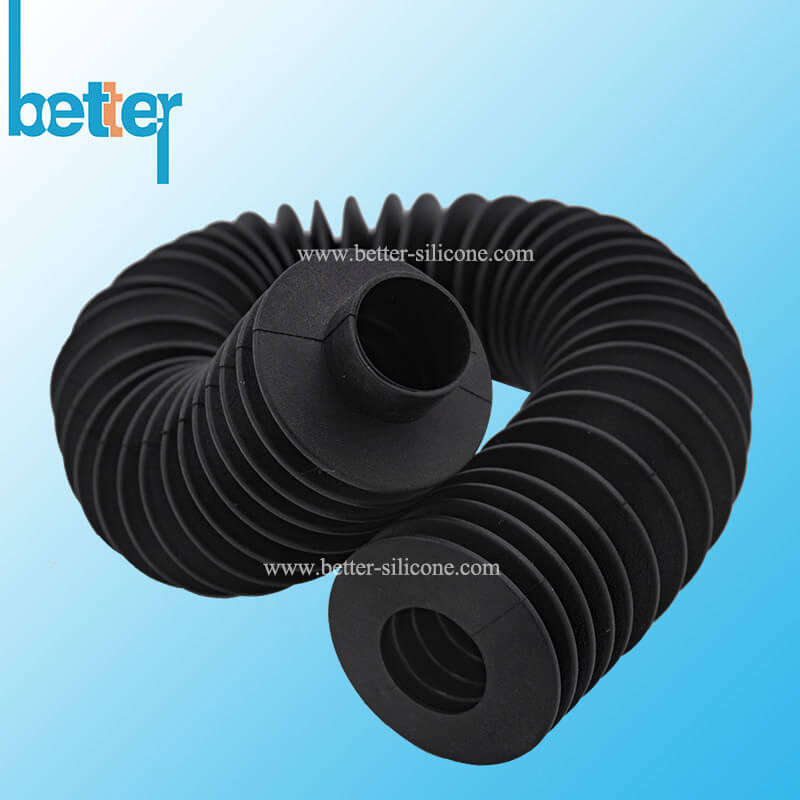

Butadien Rubber Expansion Bellows
Tapered
Buna n Expansion  Bellows

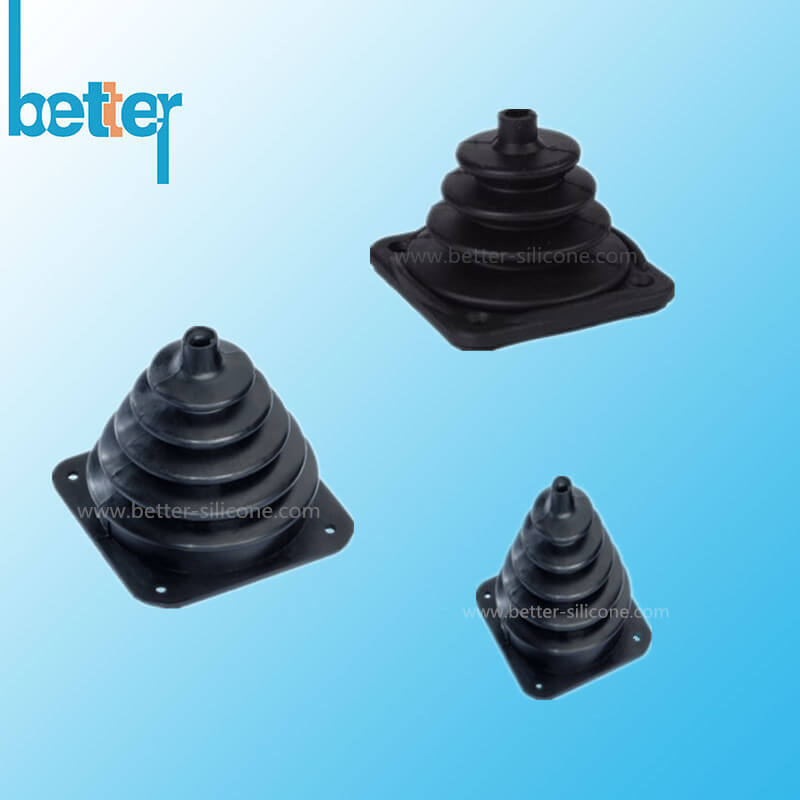

Buna Nitrile Expansion bellows
Metal +
Buna n Expansion  Overmolded  Bellows

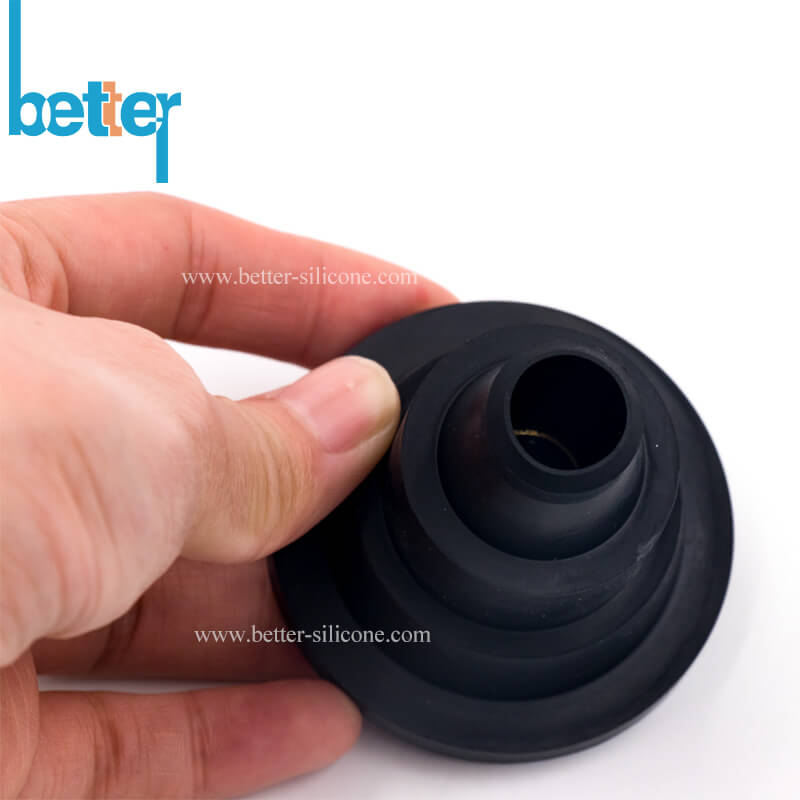

Buna n Metal Expansion Bellows
Buna n Expansion  Bellows with Clamp & Locks

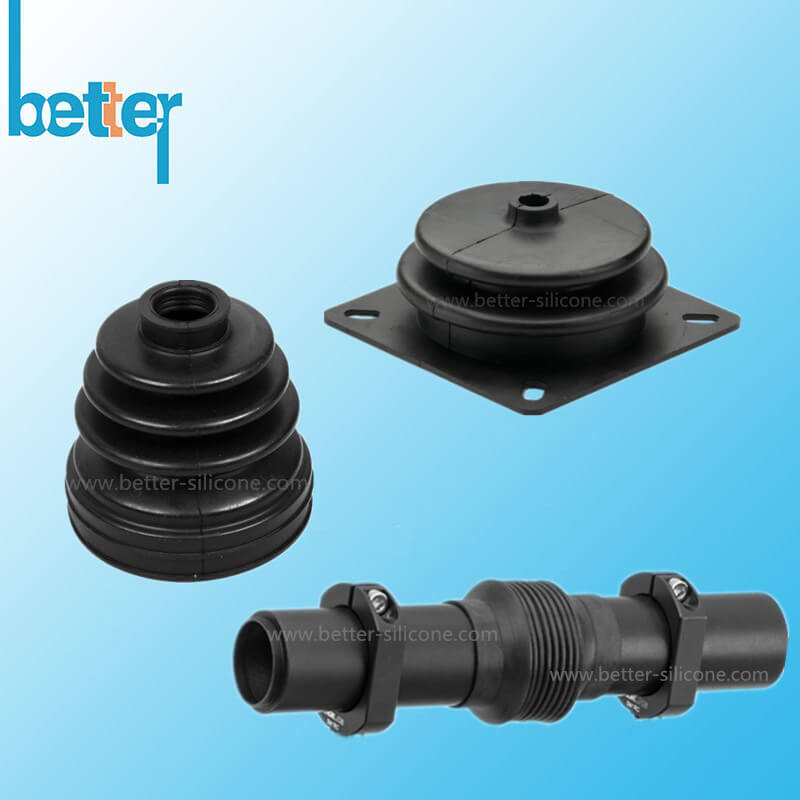

Buna Expansion Clamp Bellows
Rubber Bellows Main Materials


Material Abbreviation Temperature Range Aging Weathering Ozone Resistance to Oil & Grease Water Swell Resistance  Flex-Fatigue Economy of Material Material Notes
Chloroprene(Neoprene) CR -40F to 250F Good Good Average Very Good Good exposure to refrigerants,can be compounded for FDA applications
Nitrile NBR -22F to 212F Poor Very Good Good Good Very Good Automotive Applications, Good Oil Proof
Ethylence-Propylene EPDM,EPM -60F to 300F Very Good Poor Very Good Good Very Good Outside Applications, Good Weather Proof
Silicone VMQ -75F to 450F Very Good Average Very Good Very Good Average Medical Applications
Fluo Rubber FKM 5F   to 390F Very Good Very Good Good Average Poor Rubber King, Widely Applications
