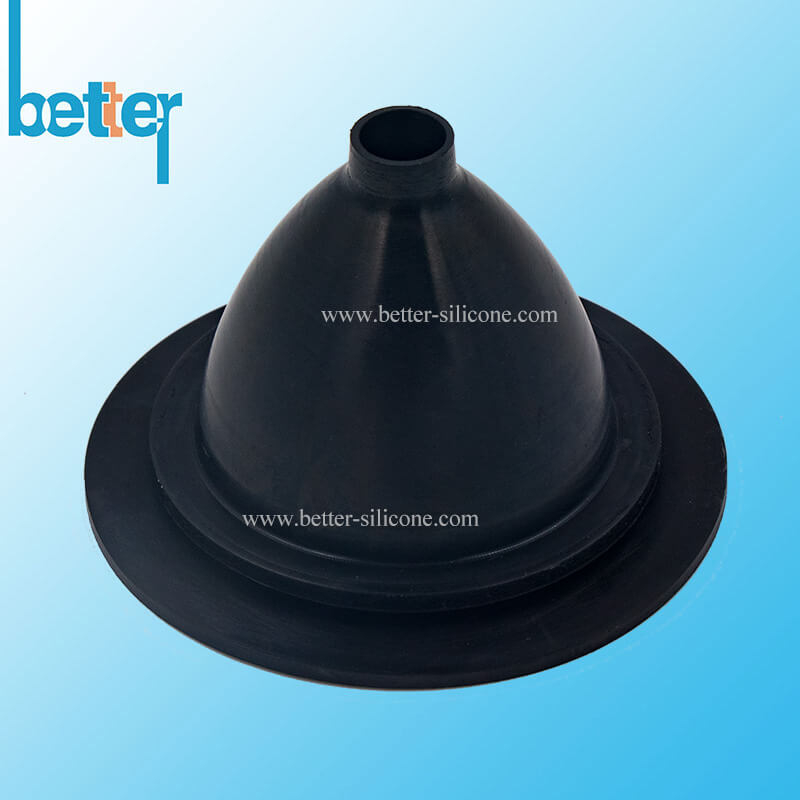

NBR Bellows

NBR Bellows, also known as Nitrile Rubber Bellows & NBR Rubber Bellows are mainly used as a cover or expansion joint for connecting moving parts and protect inner components against oil, dust, water, grease, acids, bleaches, etc, also called protective cover and expansion joint bellows.

  • SRB-02
  • Better
  • 3924100000
Quantity:

NBR Bellows

NBR Bellows, also known as Nitrile Rubber Bellows & NBR Rubber Bellows are mainly used as a cover or expansion joint for connecting moving parts and protect  inner components against oil, dust, water, grease, acids, bleaches, etc, also called protective cover and expansion joint bellows.

NBR Bellows are produced by silicone rubber compression molding, extrusion moulding or rubber injection moulding.
NBR Bellows
NBR Bellows Advantages:

1. Excellent Oil-proof:
Excellent oil resistance ranks only second to polysulfide rubber, acrylate and FKM
2. High tensile strength and wear resistance.
3. Good Heat Resistance:
Working Temperature ranging -35oC-110oC. (Short-period working: 120oC)
4. Good air tightness
5. Strong Adhesion

NBR Bellows Disadvantages:
1. Poor ozone resistance, against storage
2. Poor electrical property
3. No resistance to aromatic solvents, halogenated hydrocarbon solvents and ketones & esters solvents
4. Low elasticity
NBR Nitrile Bellows
NBR Bellows Main Struction and Shape

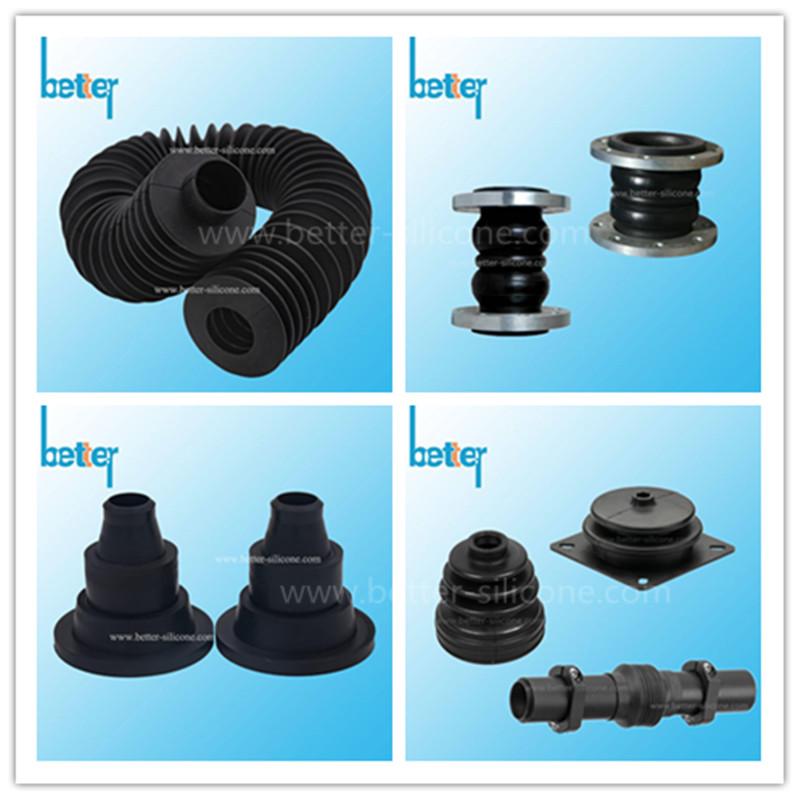

NBR Rubber Bellows
Straight Convolution NBR Bellows

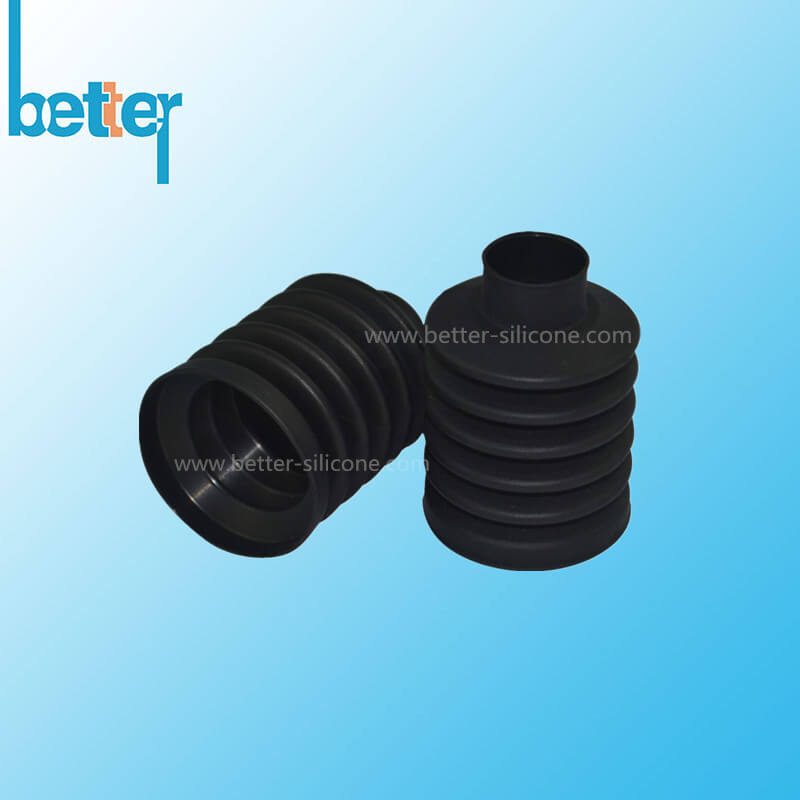

NBR BUna n Bellows
Tapered NBR Bellows

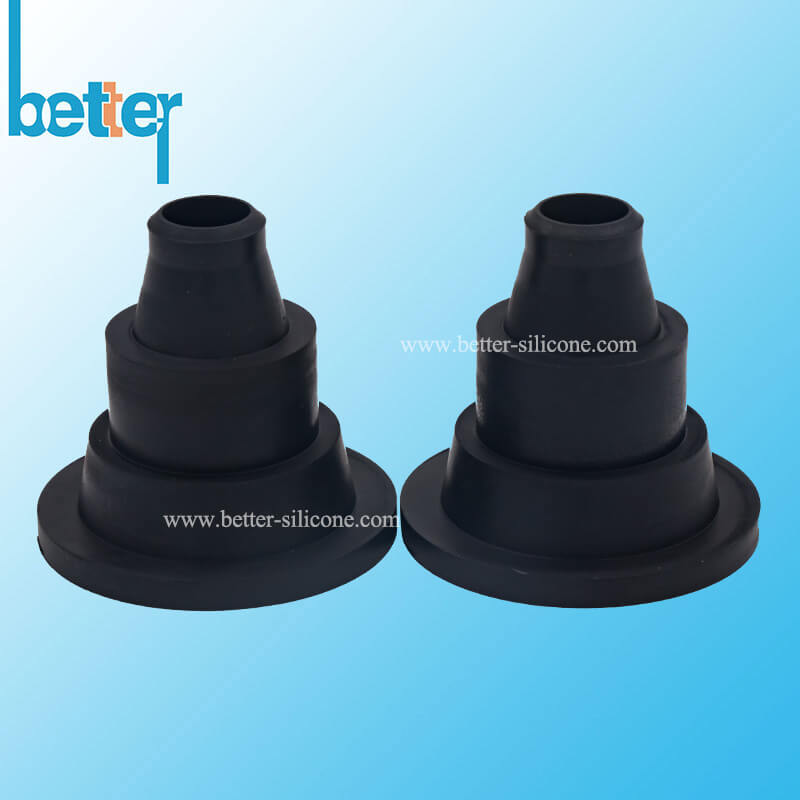

NBR Nitrile Bellows
Metal + NBR Overmolded
Bellows

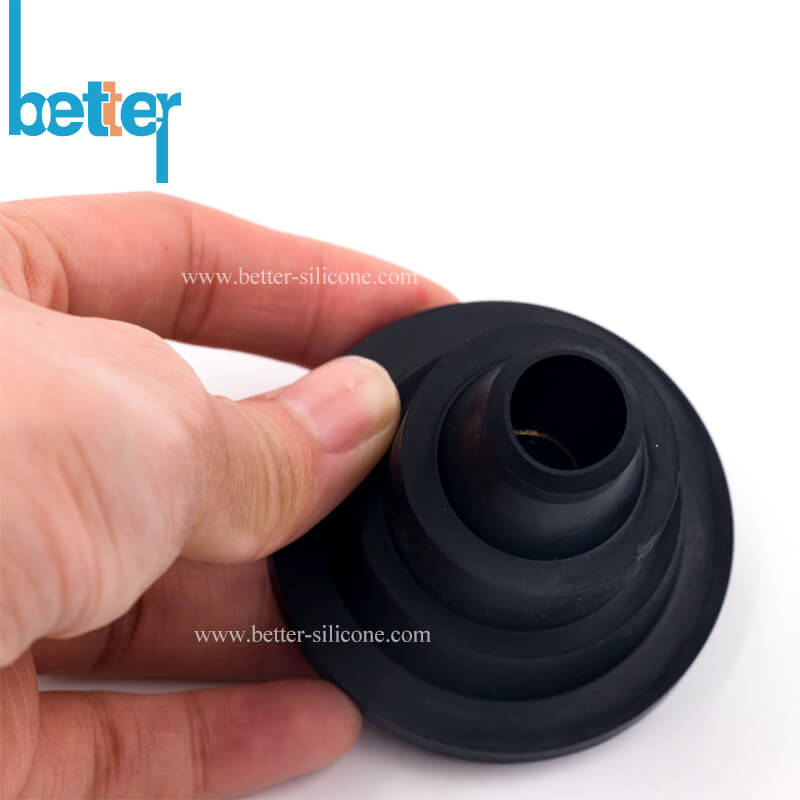

Metal NBR Rubber Bellows
NBR Bellows with Clamp & Locks

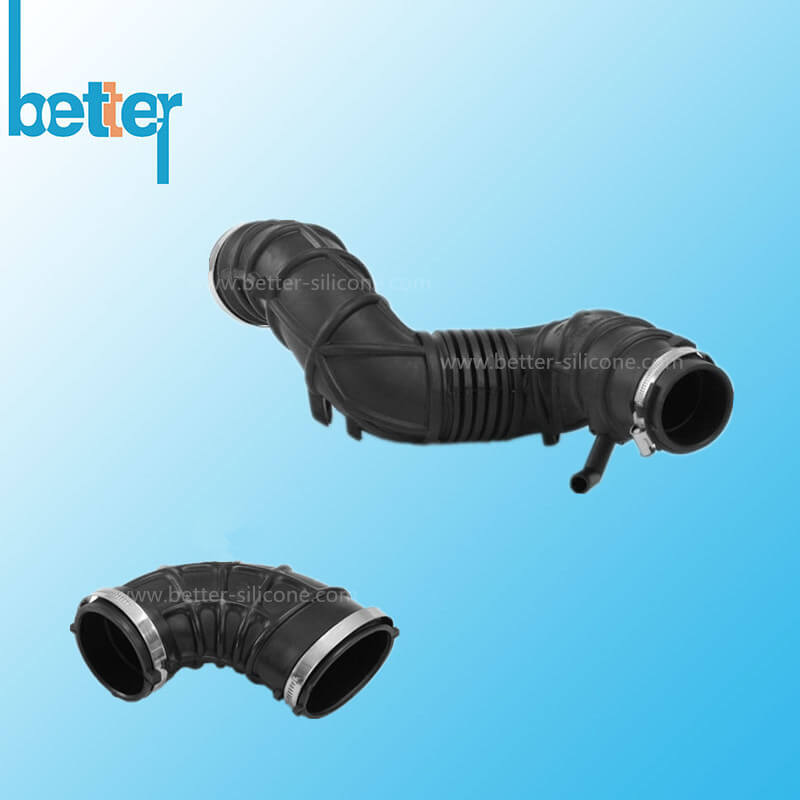

NBR Bellows with Clamp
Rubber Bellows Main Materials


Material Abbreviation Temperature Range Aging Weathering Ozone Resistance to Oil & Grease Water Swell Resistance  Flex-Fatigue Economy of Material Material Notes
Chloroprene(Neoprene) CR -40F to 250F Good Good Average Very Good Good exposure to refrigerants,can be compounded for FDA applications
Nitrile NBR -22F to 212F Poor Very Good Good Good Very Good Automotive Applications, Good Oil Proof
Ethylence-Propylene EPDM,EPM -60F to 300F Very Good Poor Very Good Good Very Good Outside Applications, Good Weather Proof
Silicone VMQ -75F to 450F Very Good Average Very Good Very Good Average Medical Applications
Fluo Rubber FKM 5F   to 390F Very Good Very Good Good Average Poor Rubber King, Widely Applications
